Tractors > CaseIH > 7120

CaseIH 7120 Tests



CaseIH 7120 tractor photo
1987 - 1993
Magnum Series
Row-Crop tractor
Series map:
7110
7120
7130
144.4hp*
166.7hp*
188.9hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1610

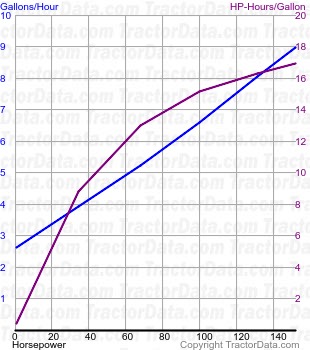

7120 fuel use from test 50
OCED Tractor Test 1610
Diesel 18-speed 4WD
May 1 - July 1, 1988
Link: OCED Tractor Test 1610 file
PTO performance
Max power155.38 hp
115.9 kW
Fuel use8.5 gal/hour
32.2 l/hour
Power at rated engine speed151.62 hp
113.1 kW
Fuel use9.0 gal/hour
34.1 l/hour
Drawbar performance
Max power135.55 hp
101.1 kW
Fuel use8.5 gal/hour
32.2 l/hour
Gear 9 used for power test.
Max pull19,538 lbs
8862 kg
Gear 5 used for pull test.
