Tractors > CaseIH > 7130

CaseIH 7130 Tests



CaseIH 7130 tractor photo
1987 - 1993
Magnum Series
Row-Crop tractor
Series map:
7120
7130
7140
166.7hp*
188.9hp*
216.7hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1611

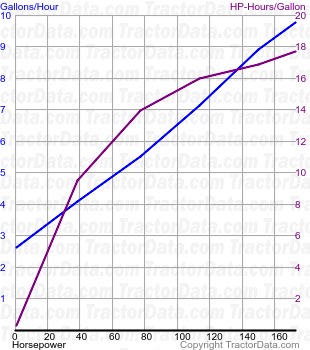

7130 fuel use from test 51
OCED Tractor Test 1611
Diesel 18-speed 4WD
July 1988 - 1988,
Link: OCED Tractor Test 1611 file
PTO performance
Max power179.10 hp
133.6 kW
Fuel use9.5 gal/hour
36.0 l/hour
Power at rated engine speed172.57 hp
128.7 kW
Fuel use9.7 gal/hour
36.7 l/hour
Drawbar performance
Max power155.35 hp
115.8 kW
Fuel use9.5 gal/hour
36.0 l/hour
Gear 9 used for power test.
Max pull20926 lbs
9492 kg
Gear 5 used for pull test.
