    CaseIH 5140 Maxxum

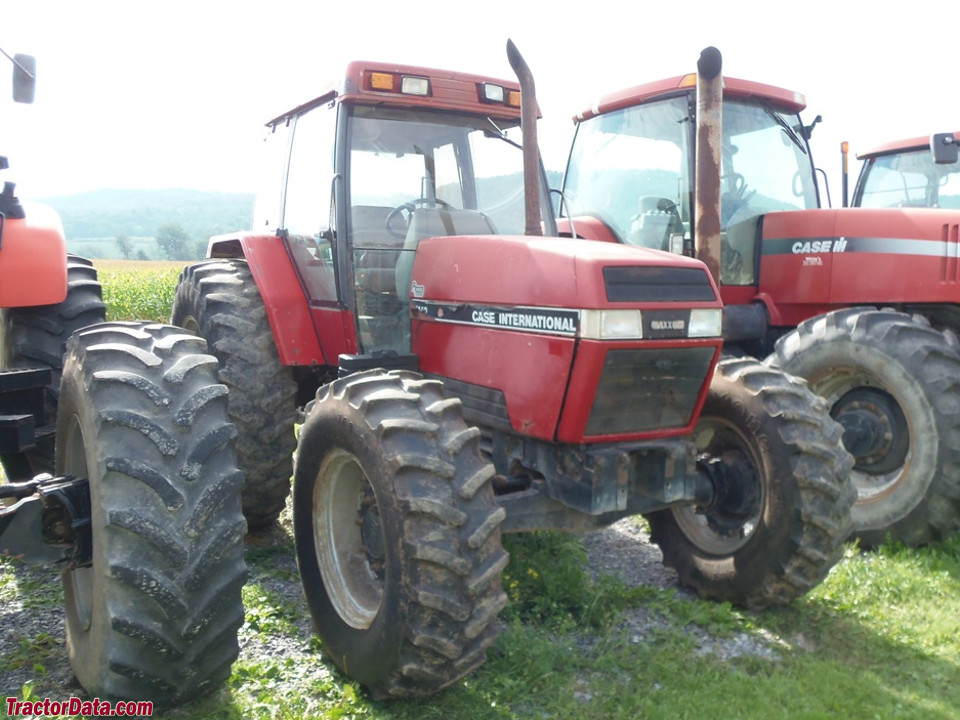

    CaseIH 5140 Maxxum tractor photo
    1990 - 1991   Maxxum Series
    Utility tractor
    Next model:CaseIH 5240
    Series back:CaseIH 5130



    Factory:Neuss, Germany
    Original price (USD):$34,000 (1991)

    CaseIH 5140 Engine:

       CDC 5.9L 6-cyl diesel
    full engine details ...


    Fuel:35.7 gal [135.1 L]
     45 gal [170.3 L] (optional)

    3-Point Hitch:

    Rear Type:II
    Control:lower link
    Rear lift (at 24"/610mm):7,700 lbs [3492 kg]
    Front Hitch:II (optional)
    Front lift (at 24"/610mm):5,200 lbs [2358 kg]

    Power Take-off (PTO):

    Rear PTO:independent
    Clutch:hydraulic wet disc
    Rear RPM:540/1000

    Dimensions & Tires:

    Wheelbase:103.7 inches [263 cm] (2WD)
     101.8 inches [258 cm] (4WD)
    Weight:9810 to 10826 pounds
    Front tire:10.00-16
    Rear tire:16.9-38 (2WD)
    full dimensions and tires ...

    CaseIH 5140 attachments:

     front-end loader
    all 5140 attachments ...

    5140 Serial Numbers:

    Location:Inside cab on left
    1990: JJF1000001
    1991: JJF1006114

    how to read serial numbers...


    CaseIH 5140 Power:

    Engine:108.5 hp [80.9 kW]
    PTO (claimed):94 hp [70.1 kW]


    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:electrically activated
    Steering:hydrostatic power
    Brakes:hydraulic wet disc
    Cab:Flat-deck platform with two-post fixed ROPS. Optional canopy or foldable ROPS. Cab optional with air-conditioning.


    Type:closed center pressure flow compensated
    Pressure:2600 psi [179.3 bar]
    Valves:1 to 4
    Total flow:20.1 gpm [76.1 lpm]


    Charging system:alternator
    Charging amps:65
