CaseIH 4230 - transmission

CaseIH 4230 tractor photo
1994 - 1997   4200 Utility Series
Utility tractor
Previous model:CaseIH 895
Next model:CaseIH CX90
Series next:CaseIH 4240
Series back:CaseIH 4210
more CaseIH 4230 specifications...






Transmission:

Type:synchromesh
Gears:8 forward and 4 reverse
Clutch:12-inch dry cerametallic
Oil capacity:35.9 qts [34.0 L] (2WD)
 38.6 qts [36.5 L] (4WD)
Four gears (1-4) in two ranges (L/H) plus reverse range.
Speeds:With 18.4x30 rear tires.

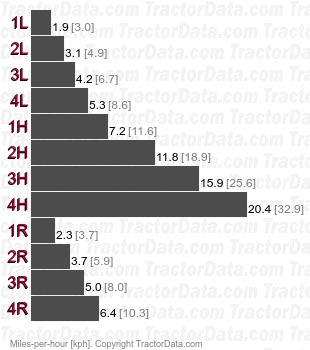

4230  synchromesh speeds


Transmission:

Type:shuttle
Gears:8 forward and reverse
Clutch:12-inch dry cerametallic
Oil capacity:35.9 qts [34.0 L] (2WD)
 38.6 qts [36.5 L] (4WD)
Speeds:With 18.4x30 rear tires.

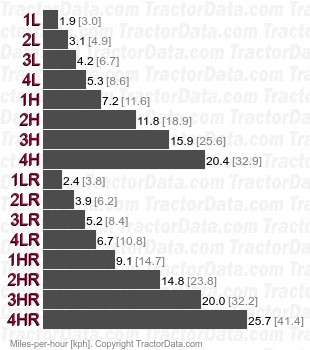

4230  shuttle speeds


Transmission:

Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:12-inch dry cerametallic
Oil capacity:35.9 qts [34.0 L] (2WD)
 38.6 qts [36.5 L] (4WD)
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.
Speeds:With 18.4x30 rear tires.

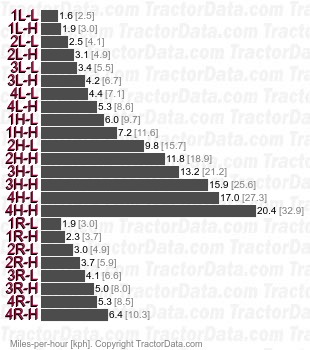

4230  partial power shift speeds
CaseIH 4230  transmission photo



Transmission:

Type:synchromesh creeper
Gears:16 forward and 8 reverse
Clutch:12-inch dry cerametallic
Oil capacity:35.9 qts [34.0 L] (2WD)
 38.6 qts [36.5 L] (4WD)
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.
Speeds:With With 18.4x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.

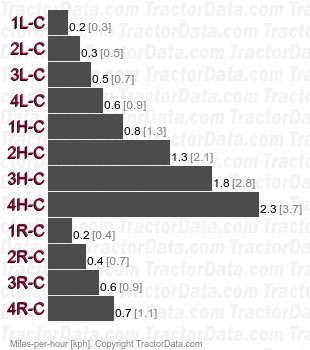

4230  synchromesh creeper speeds
