CaseIH CX90 Transmission


CaseIH CX90 tractor photo
1998 - 2002
CX Utility Series
Utility tractor
4230
Series:CX80CX90CX100
Transmissions overview
8-speed synchro shuttle
16-speed partial power shift
24-speed creeper
Transmission
Type:synchro shuttle
Gears:8 forward and reverse
Clutch:12-inch dry disc
Oil capacity:36.4 qts
34.4 L (2WD)
 39.1 qts
37.0 L (4WD)
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.
Transmission
Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:12-inch dry disc
Oil capacity:36.4 qts
34.4 L (2WD)
 39.1 qts
37.0 L (4WD)

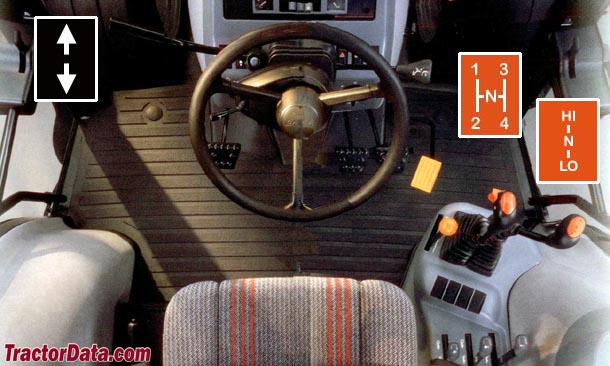

Four gears (1-4) in two ranges (low/high) with push-button power shift on the gear shift lever. Left-hand shuttle lever on the steering column.

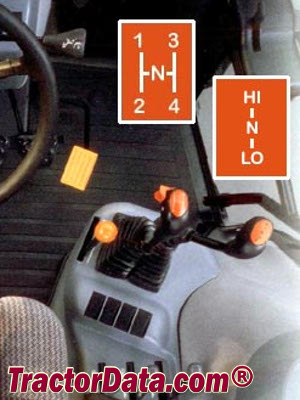

CaseIH CX90  transmission photo
Transmission
Type:creeper
Gears:24 forward and 12 reverse
