TractorData.com - information on all makes and models of tractors
Tractors > CaseIH > 2294

CaseIH 2294 - transmission

CaseIH 2294 tractor photo
1984 - 1988
Previous model:J.I. Case 2294
Series next:CaseIH 2394
more CaseIH 2294 specifications...





Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.


Transmission:

Type:partial power shift
Gears:12 forward and 3 reverse
Oil capacity:100 qts [94.6 L]
Four ranges and three power shifts (clutchless on-the-move shifting) in each range.

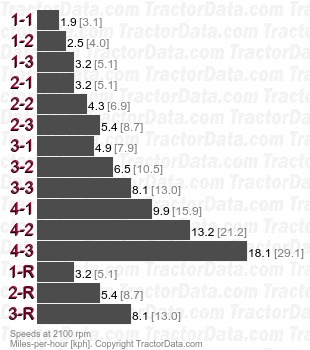

Speeds:With 18.4x38 rear tires.
2294  partial power shift speeds
