Tractors > CaseIH > MX110 Maxxum

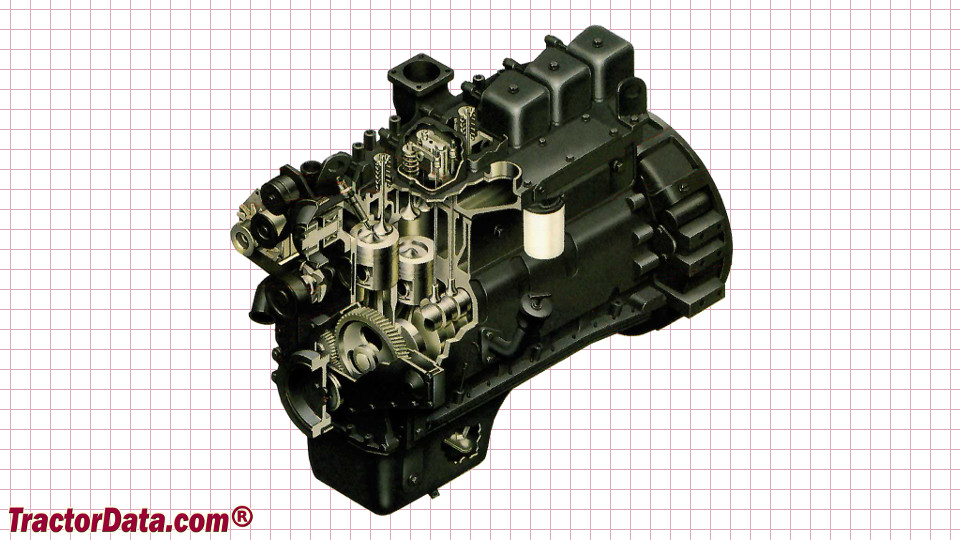

CaseIH MX110 Maxxum - engine

CaseIH MX110 Maxxum tractor photo
1997 - 1999   Maxxum Series
Previous model:CaseIH 5230
Series next:CaseIH MX120
Series back:CaseIH MX100
more CaseIH MX110 Maxxum specifications...






Engine Detail:

 Cummins/CDC
 turbocharged diesel
 6-cylinder 12-valve
 liquid-cooled inline
 359 ci [5.9 L]
Bore/Stroke:4.016x4.724 inches [102 x 120 mm]
Power:110 hp [82.0 kW]
Fuel system:direct injection with mechanical governor, Bosch in-line A pump with Bosch 5-hole injectors
Air cleaner:dual-element dry
Compression:17.5:1
Rated RPM:2200
Starter volts:12
Oil capacity:15.8 qts [15.0 L]
Coolant capacity:19.5 qts [18.5 L] (ROPS)
 21 qts [19.9 L] (cab)
