Tractors > Nuffield > 10/60

Nuffield 10/60

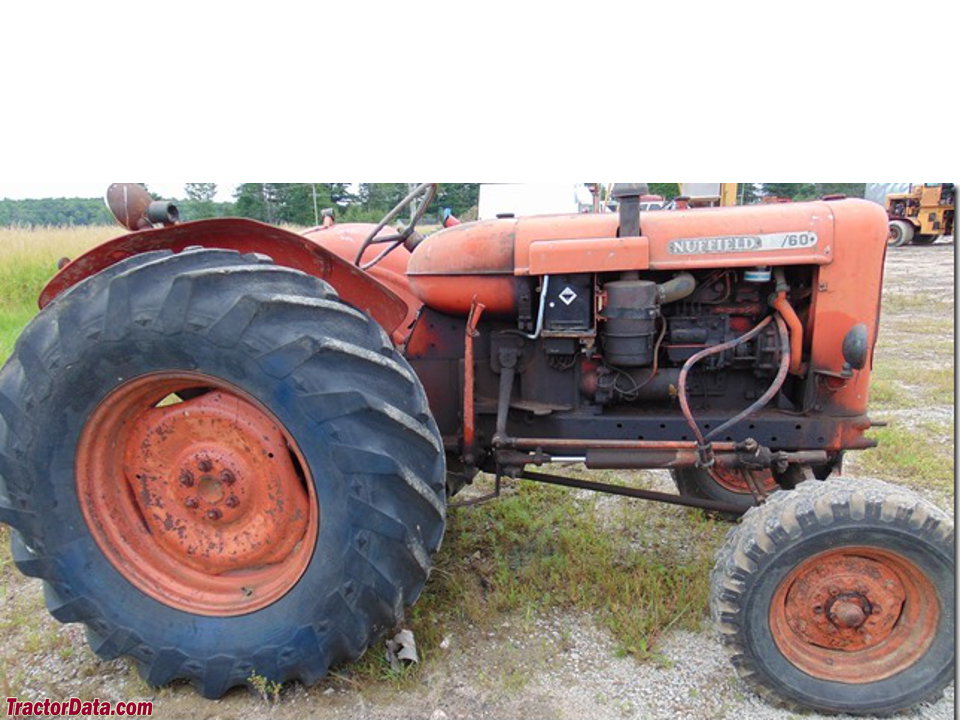

Nuffield 10/60 tractor photo
1964 - 1967
Utility tractor
Next model:Nuffield 4/65
Series back:Nuffield 10/42






Production:

Manufacturer:Nuffield


Nuffield 10/60 Engine:

   BMC 3.8L 4-cyl diesel
full engine details ...


Capacity:



3-Point Hitch:

Rear Type:II/I
Rear lift (at ends):2,830 lbs [1283 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

Weight:5,865 lbs [2660 kg]
Front tire:7.50-16
Rear tire:16.9-30
full dimensions and tires ...


10/60 Serial Numbers:


how to read serial numbers...



Nuffield 10/60 Power:

PTO (claimed):55 hp [41.0 kW]
Drawbar (tested):45.95 hp [34.3 kW]
PTO (tested):55.36 hp [41.3 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Differential lock:mechanical
Steering:manual
 power assist optional
Brakes:independent mechanical disc
Cab:Open operator station.


Hydraulics:

Pressure:2000 psi [137.9 bar]
Total flow:6 gpm [22.7 lpm]


Battery:

Number:2
Volts:6
