Tractors > Nuffield > 10/60

Nuffield 10/60 Tests



Nuffield 10/60 tractor photo
1964 - 1967
Utility tractor
Series map:
10/42
10/60
32.3kw*
45.6kw*
*Estimated engine power for comparison only.
Nebraska Tractor Test 907

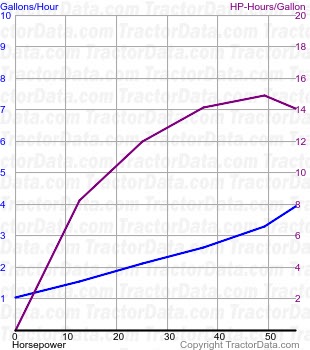

10/60 fuel use from test 907
Nebraska Tractor Test 907
Diesel 10-speed 2WD
August 6 - 12, 1965
Link: Nebraska Tractor Test 907 file
PTO performance
Power at rated engine speed55.36 hp
41.3 kW
Fuel use3.9 gal/hour
14.8 l/hour
Power at rated PTO speed43.17 hp
32.2 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power45.95 hp
34.3 kW
Fuel use3.8 gal/hour
14.4 l/hour
Gear 3L used for power test.
Max pull7667 lbs
3477 kg
Gear 2L used for pull test.
