Tractors > Ferguson > F-40

Ferguson F-40 Engine



Ferguson F-40 tractor photo
1956 - 1957
Utility tractor
Series map:
F-40
36.7hp
Engine Detail
Continental Z-134
gasoline
4.-cylinder
liquid-cooled
Displacement134 ci
2.2 L
Bore/Stroke3.3125x3.875 inches
84 x 98 mm
Air cleaneroil bath
Compression6.6:1
Rated RPM2000
Idle RPM400-2200
Starter volts12
Coolant capacity10 qts
9.5 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.022 inches
0.559 mm
Intake valve clearance0.015 inches (cold)
0.381 mm
Exhaust valve clearance0.015 inches (cold)
0.381 mm
Engine Oil

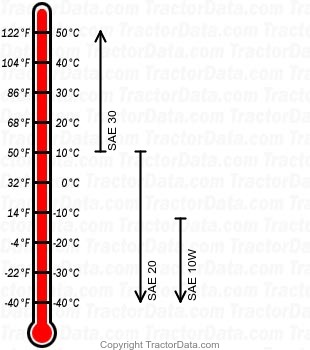

F-40 gasoline engine oil chart
Oil capacity5 qts
4.7 L
