Tractors > Ferguson > F-40

Ferguson F-40 Transmission



Ferguson F-40 tractor photo
1956 - 1957
Utility tractor
Series map:
F-40
36.7hp
Transmission
Typeunsynchronized gear
Gears6 forward and 2 reverse
Clutchdry disc
Oil capacity32 qts
30.3 L
Oil type
50oF [10oC]↑ : SAE 90 GL1
50oF [10oC]↓ : SAE 80 GL1
Three gears, plus reverse, in two ranges.

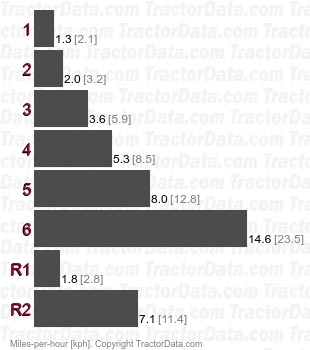

Speeds
F-40 unsynchronized gear speeds

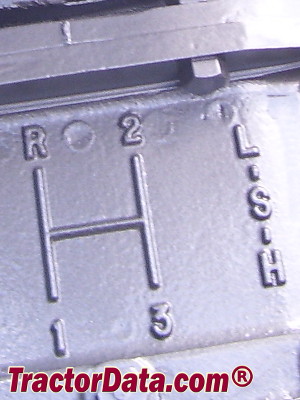

Shift Pattern
Ferguson F-40 transmission controls
