Steiger Tiger III ST-470 Engine


Steiger Tiger III ST-470 tractor photo
1980 - 1982
III Series
Four-wheel Drive (4WD) tractor

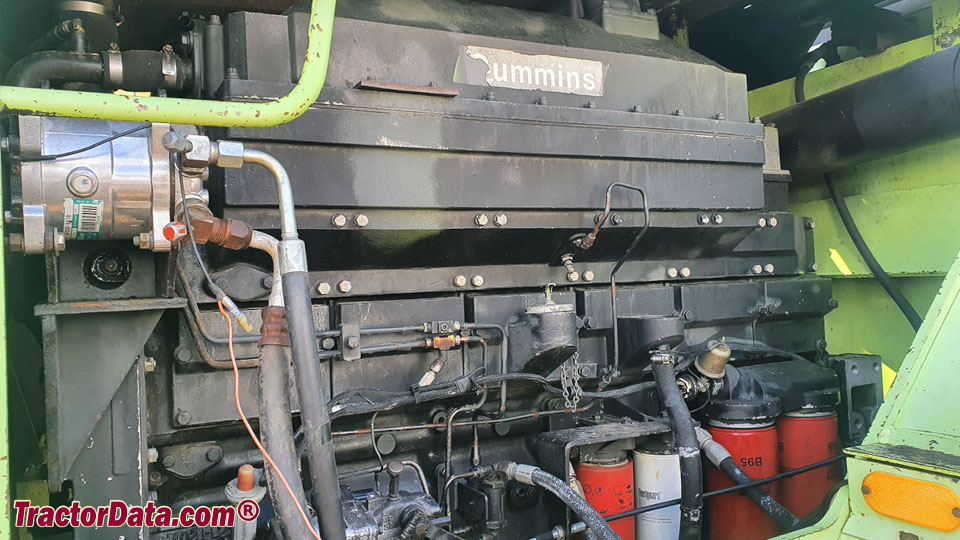

Engine Detail
Cummins KTA-1150
turbocharged diesel
6-cylinder
liquid-cooled inline
The 470 horsepower Cummins engine was available in early versions of the Steiger ST-450. Later, this version became the ST-470 due to its higher power.
Displacement:1150 ci
18.8 L
Bore/Stroke:6.25x6.25 inches
159 x 159 mm
Power:470 hp
350.5 kW
Compression:15.5:1
Rated RPM:1700*The KTA-1150 was rated at 1700 and 2100 RPM
Idle RPM:650-2350
Torque:1580 lb-ft
2142.5 Nm
Torque RPM:1500
Starter volts:24
Oil capacity:76 qts
71.9 L
Coolant capacity:112 qts
106.0 L
