Steiger Cougar II ST-300


Steiger Cougar II ST-300 tractor photo
1974 - 1976
II Series
Four-wheel Drive (4WD) tractor
Cougar
Series:Cougar II ST-300
Production
Manufacturer:Steiger
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Steiger Cougar II ST-300 Power
Engine:300 hp
223.7 kW
Drawbar (claimed):227 hp
169.3 kW
Mechanical
Chassis:4x4 4WD
Cab:Cab standard with optional heat and air-conditioning.
Transmission:10-speed
Transmission details ...
Hydraulics
Type:open center
Pump flow:25 gpm
94.6 lpm
Steering flow:18 gpm
68.1 lpm
Dimensions & Tires
Wheelbase:121.5 inches
308 cm
Weight:22000 lbs
9979 kg
Front tire:23.1-30
Rear tire:23.1-30
Full dimensions and tires ...

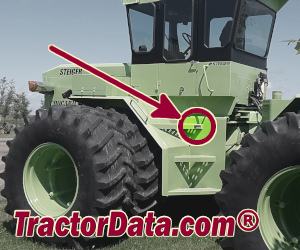

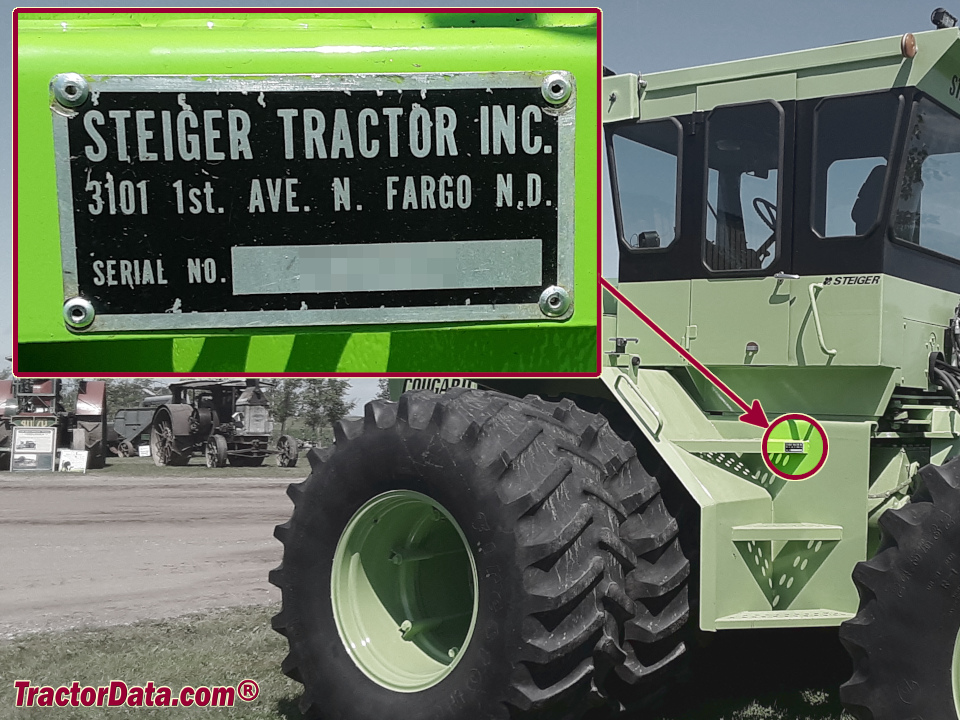

Cougar II ST-300 Serial Numbers
1974:20501
1975:20726
1976:21220

how to read serial numbers...

Electrical
Charging system:alternator
Charging amps:62
Battery volts:12
