Tractors > Steiger > Bearcat II ST-225

Steiger Bearcat II ST-225 Transmission



Steiger Bearcat II ST-225 tractor photo
1974 - 1976
II Series
Four-wheel Drive (4WD) tractor
Series map:
Super Wildcat II ST-200
Bearcat II ST-225
Cougar II ST-300
200.0hp
210.0hp
300.0hp
Transmission
TransmissionDana-Spicer ST-1010
Typegear
Gears10 forward and 2 reverse
Clutch355.6mm cerametallic disc
Fuller TA4510 used on the RC-200.

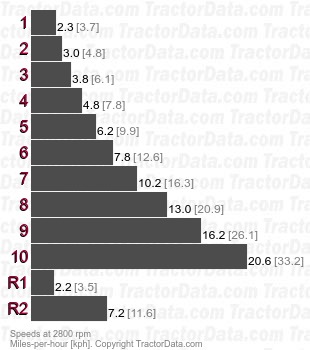

Speeds
With 23.1-34 tires.
Bearcat II ST-225 ST-1010 gear speeds
