Steiger Wildcat


Steiger Wildcat tractor photo
1969 - 1973
I Series
Four-wheel Drive (4WD) tractor
Series map:
Wildcat
Super Wildcat
175.0hp
200.0hp
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $18,700 in 1973
Steiger Wildcat Engine
Caterpillar 8.6L 8-cyl diesel
Fuel tank140 gal
529.9 L
Engine details ...
Steiger Wildcat Power
Engine175 hp
130.5 kW
Mechanical
Four-wheel drive
Final drivesplanetary
Articulated power steering
Hydraulic disc brakes
Cab standard with available air-conditioning.
Photos
No photos of the Steiger Wildcat are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure2000 psi
137.9 bar
Pump flow25 gpm
94.6 lpm
Tractor hitch
Rear TypeIV OptOptional
Rear lift8000 lbs
3628 kg
Dimensions & Tires
Wheelbase120 inches
304 cm
Weight17000 lbs
7711 kg
Front tire18.4-30
Rear tire18.4-30
Full dimensions and tires ...
Wildcat Serial Numbers
19698000
19708059
19718319
19728369
19738553

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References

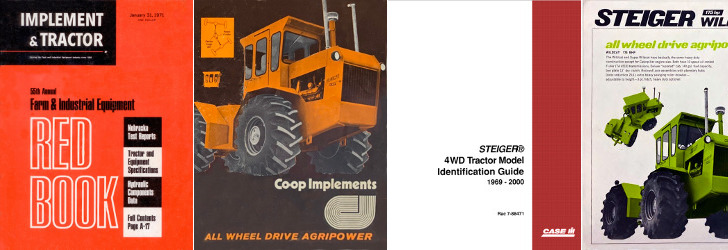

Wildcat references literature
Red Book 1971 published by Implement & Tractor
All Wheel Drive Agripower published in 1971, by Canadian Co-operative Implements
Steiger Identification Guide: 1969-1998 published by Case IH
Wildcat published in 1970, by Steiger
