Tractors > Minneapolis-Moline > M-5

Minneapolis-Moline M-5 Transmission



Minneapolis-Moline M-5 tractor photo
1960 - 1963
Series map:
M-5
69.0hp
Transmission
TransmissionAmpli-Torc
Typepartial power shift
Gears10 forward and 2 reverse
Five gears, plus reverse, with the Ampli-Torc high-low shifting. The Ampli-Torc may be shifted on the move, without using the clutch. Engine braking is only available in high range.
Speeds

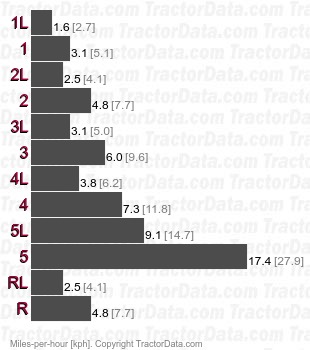

M-5 Ampli-Torc partial power shift speeds

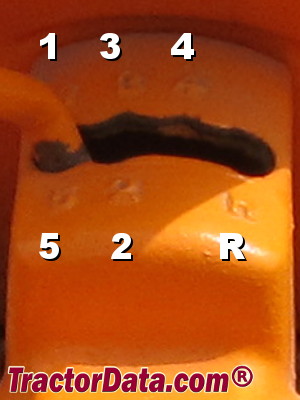

Shift Pattern
Minneapolis-Moline M-5 transmission controls
