Minneapolis-Moline 5 Star Transmission

Minneapolis-Moline 5 Star tractor photo
1957 - 1960
Series map:
5 Star
Typepartial power shift
Gears10 forward and 2 reverse
Clutch304.8mm dry disc
Oil capacity56 qts
53.0 L
Oil type
SAE 80
Five gears (1-5) plus reverse (R) in with two speed (low-high) Ampli-Torc power shift.
With 13.6x38 rear tires.

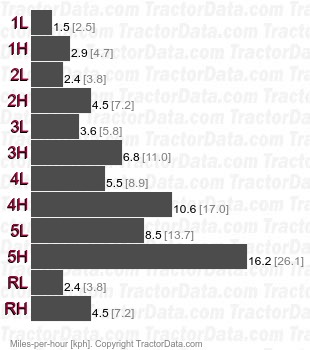

5 Star Ampli-Torc partial power shift speeds
Shift Pattern
Minneapolis-Moline 5 Star transmission controls
