    Minneapolis-Moline GB

    Minneapolis-Moline GB tractor photo  I&T Manual: Minneapolis-Moline series G, R, U, T, Z, B, Star, M, MF95, MF97
    I&T Shop Manual
    1955 - 1959
    Standard-tread tractor
    Previous model:Minneapolis-Moline GTB






    Production:

    Manufacturer:Minneapolis-Moline
    Factory:Minneapolis, Minnesota, USA
    Original price (USD):$5000 (1959)


    Minneapolis-Moline GB Engines:

       Minneapolis-Moline 6.6L 4-cyl gasoline
       Minneapolis-Moline 7.0L 6-cyl diesel
       Minneapolis-Moline 6.6L 4-cyl LP gas
    full engine details ...


    Capacity:



    Power Take-off (PTO):

    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:82.5 inches [209 cm]
    Weight:7100 to 12000 pounds
    Front tire:7.50-18
    Rear tire:14-34
    full dimensions and tires ...

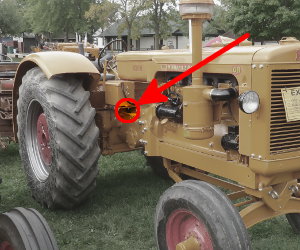

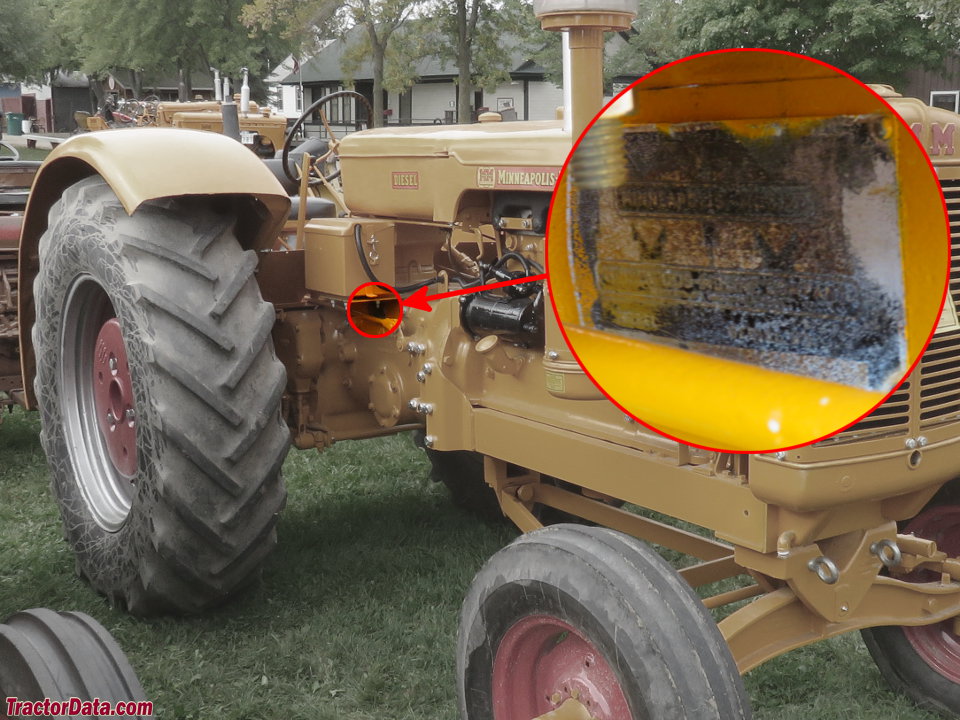

    GB Serial Numbers:


    - Serial numbers unknown -



    Minneapolis-Moline GB Power:

    Drawbar (claimed):50 hp [37.3 kW]
    PTO (claimed):64 hp [47.7 kW]
    Drawbar (tested):63.70 hp [47.5 kW]
    Belt (tested):70.55 hp [52.6 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Brakes:disc
    Cab:Open operator station.


    Belt Pulley:

    Diameter:16 inches [40 cm]
    Width:7 inches [17 cm]
    RPMs:741
    Speed:3104 ft/min [946.10 meters/min]


    Battery:

    Volts:12
