Massey Ferguson 4270


Massey Ferguson 4270 tractor photo
1997 - 2001
4200 Series
Utility tractor
Series map:
4263
4270
100.0hp
110.0hp
Production
ManufacturerMassey Ferguson
Utility tractor
Built in Coventry, England
Original price was $42,700 in 1999
Massey Ferguson 4270 Transmissions
12-speed power shuttle
24-speed power shuttle with power shift
18-speed two-speed power shift
12-speed partially synchronized
Transmission details ...
Massey Ferguson 4270 Power
Engine (net)110 hp
82.0 kW
PTO (claimed)99 hp
73.8 kW
Drawbar (tested)79.0 hp
58.9 kW
PTO (tested)101.5 hp
75.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesoutboard planetary
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Capacity
ROPS Fuel52.8 gal
199.8 L
Cab Fuel54 gal
204.4 L
Hydraulic system13.2 gal
50.0 L
Hydraulics
Typeopen center
Capacity13.2 gal
50.0 L
Pressure3046 psi
210.0 bar
Valves2 to 4
Pump flow17.4 gpm
65.9 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Cab Rear lift (at ends)7958 lbs
3609 kg
ROPS Rear lift (at ends)6362 lbs
2885 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@1902
 1000@2000
Dimensions & Tires
Wheelbase103 inches
261 cm
Weight7712 to 9105 pounds
Front tire10.00-16
Rear tire18.4-30
Full dimensions and tires ...
4270 Serial Numbers
1997F01001
1998G01001
1999H01001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps45
Cab Charging amps70
Batteries2
Battery CCA590
Battery volts12
References

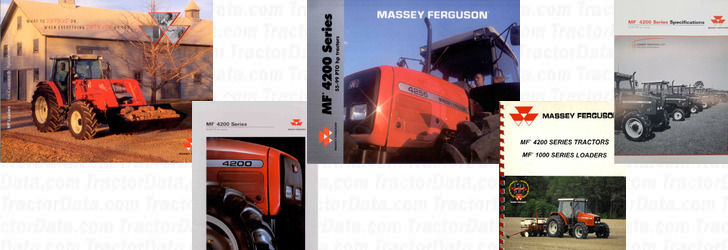

4270 references literature
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
MF 4200 Series published in 1997, by Massey Ferguson
MF 4200 Series published in 2000, by Massey Ferguson
MF 4200 Series Tractors - MF 1000 Series Loaders Dealer Launch published in 1997, by Massey Ferguson
MF 4200 Series Specifications published in 1997, by Massey Ferguson
