| | 1991 - 1993 |
| 1100 Series | | Compact Utility tractor | | Iseki built |
|
Series map:
1140
1145
30.0hp
35.0hp
| Transmission |
| Type | partially synchronized
|
| Gears | 16 forward and reverse
|
| Clutch | 225mm dry disc
|
| Four gears (1-4) in four ranges (1-4) with synchronized shuttle shifting. Gears three and four are synchronized. |

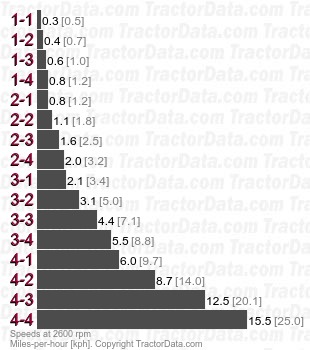

| Speeds |
| With 12.4-24 rear tires. Reverse speeds are about 5% slower than forward. |
|
