Tractors > Massey Ferguson > 290

Massey Ferguson 290

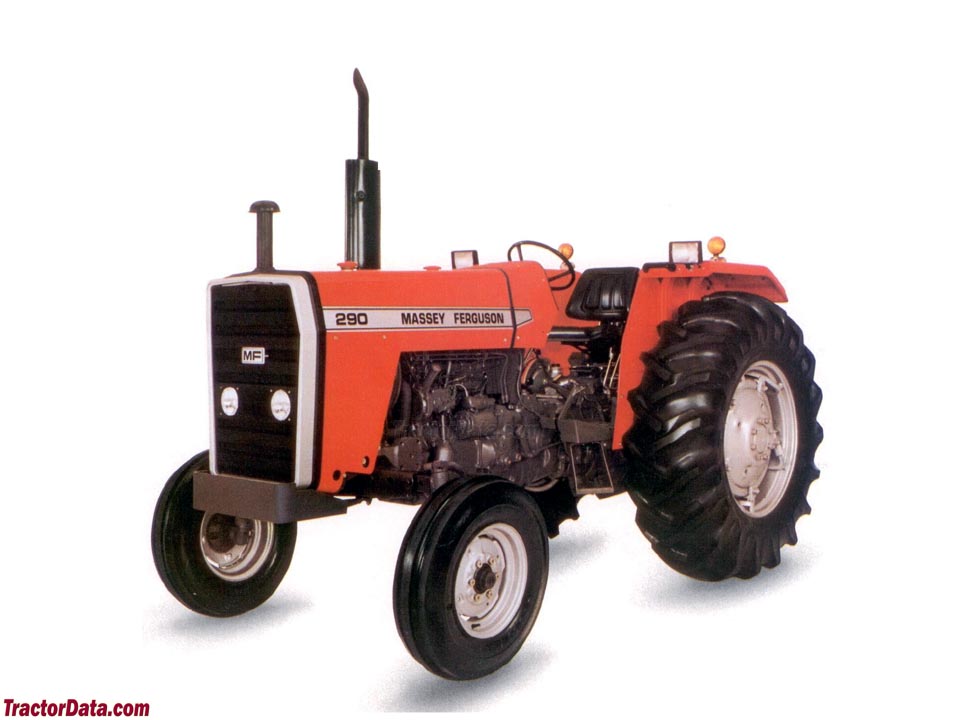

Massey Ferguson 290 tractor photo
1983 - 1986
Previous model:Massey Ferguson 275
Next model:Massey Ferguson 390
Massey Ferguson 390
Series next:Massey Ferguson 298
Series back:Massey Ferguson 270






Production:

Manufacturer:Massey Ferguson
Factory:Coventry, England
Original price (USD):$21,100 (1986)


Massey Ferguson 290 Engine:

   Perkins 4.1L 4-cyl diesel
full engine details ...


Capacity:

Fuel:21 gal [79.5 L]
Hydraulic system:11 gal [41.6 L]


3-Point Hitch:

Rear Type:II


Power Take-off (PTO):

Rear PTO:live (dual clutch)
 independent (optional)
Rear RPM:540
 540/1000 (optional)


Dimensions & Tires:

Wheelbase:84 inches [213 cm] (2WD)
 90.2 inches [229 cm] (4WD)
Weight:5512 to 9070 pounds
Front tire:6.50-16
Rear tire:16.9x24
full dimensions and tires ...


290 Serial Numbers:

Location:Instrument console on right side
1983: 386453
1984: 389947
1985: 393422
1986: 723909

how to read serial numbers...



Massey Ferguson 290 Power:

Engine:80 hp [59.7 kW]
PTO (claimed):65 hp [48.5 kW]
Drawbar (tested):55.32 hp [41.3 kW]
PTO (tested):65.92 hp [49.2 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Open operator station. Optional ROPS. Optional canopy.


Hydraulics:

Type:open center
Capacity:11 gal [41.6 L]
Pressure:3000 psi [206.8 bar]
Valves:1 to 3
Total flow:14 gpm [53.0 lpm]
 17 gpm [64.3 lpm] (optional)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:32
 45


Battery:

Number:2
Volts:12
