Massey Ferguson 235 Tests


Massey Ferguson 235 tractor photo
1975 - 1976
200 Series
Utility tractor
Series map:
230
235
245
38.0hp
46.7hp*
45.0hp
Tractor Tests
NTTL 1187: diesel 8-speed 2WD
NTTL 1194: gasoline 8-speed 2WD
Nebraska Tractor Test 1187

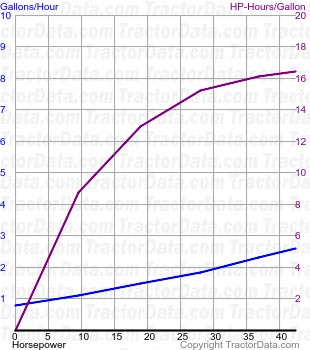

235 fuel use from test 1187
Nebraska Tractor Test 1187
Diesel 8-speed 2WD
September 4 - 18, 1975
Link: Nebraska Tractor Test 1187 file
PTO performance
Power at rated engine speed42.39 hp
31.6 kW
Fuel use2.6 gal/hour
9.8 l/hour
Power at rated PTO speed35.29 hp
26.3 kW
Fuel use2.1 gal/hour
7.9 l/hour
Drawbar performance
Max power34.95 hp
26.1 kW
Fuel use2.5 gal/hour
9.5 l/hour
Gear 4L used for power test.
Max pull4,281 lbs
1941 kg
Gear 2L used for pull test.
Nebraska Tractor Test 1194

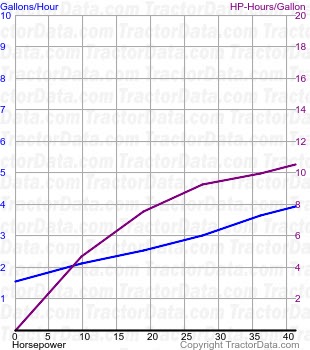

235 fuel use from test 1194
Nebraska Tractor Test 1194
Gasoline 8-speed 2WD
October 23 - November 3, 1975
Link: Nebraska Tractor Test 1194 file
PTO performance
Power at rated engine speed41.13 hp
30.7 kW
Fuel use3.9 gal/hour
14.8 l/hour
Power at rated PTO speed33.87 hp
25.3 kW
Fuel use3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power33.90 hp
25.3 kW
Fuel use3.9 gal/hour
14.8 l/hour
Gear 4L used for power test.
Max pull4,294 lbs
1947 kg
Gear 2L used for pull test.
