    Massey Ferguson 135 - transmission

    Massey Ferguson 135 tractor photo I&T Manual: Massey 135, 150, 165
    I&T Shop Manual
    Production years:1964 - 1975
    Previous model:Massey Ferguson 35
    Next model:Massey Ferguson 235
    Tractor type:Farm/Agricultural tractor
    Larger:Massey Ferguson 150
    Smaller:Massey Ferguson 130
    more Massey Ferguson 135 specifications...






    Transmission:

    Forward:6
    Reverse:2
    Oil capacity:26.4 qts [25.0 L]
    Oil type:
    : MF-1129

    Comments:Standard gear transmission for early models. Three gears, plus reverse, with high and low ranges.

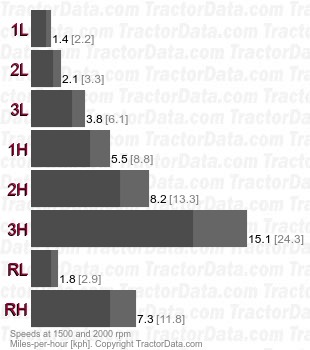

    Speeds:With 12.4/11-28 rear tires.

    Gear1500 rpm2000 rpm
    1L1.03mph [1.7kph]1.38mph [2.2kph]
    2L1.53mph [2.5kph]2.06mph [3.3kph]
    3L2.84mph [4.6kph]3.78mph [6.1kph]
    1H4.12mph [6.6kph]5.50mph [8.8kph]
    2H6.19mph [10.0kph]8.25mph [13.3kph]
    3H11.35mph [18.3kph]15.10mph [24.3kph]
    RL1.38mph [2.2kph]1.83mph [2.9kph]
    RH5.50mph [8.8kph]7.35mph [11.8kph]



    Transmission:

    Forward:8
    Reverse:2
    Oil capacity:26.4 qts [25.0 L]
    Massey Ferguson 135 transmission photo

    Comments:Later standard transmission, replacing the 6-speed.


    Transmission:

    Transmission:Multi-Power
    Type:partial power shift
    Forward:12
    Reverse:4
    Oil capacity:25.2 qts [23.8 L]
    Oil type:
    : MF-1129

    Comments:Multi-Power provides a clutchless power shift from high (direct drive) to a lower speed, providing additional torque. Three gears, plus reverse, in high and low ranges plus the high/low Multi-Power. Multi-Power High should be used on hills as the low speed does not allow for engine braking.

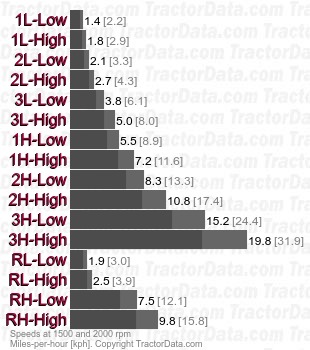

    Speeds:With 12.4/11-28 rear tires.

    Gear1500 rpm2000 rpm
    1L-Low1.03mph [1.7kph]1.38mph [2.2kph]
    1L-High1.35mph [2.2kph]1.80mph [2.9kph]
    2L-Low1.55mph [2.5kph]2.07mph [3.3kph]
    2L-High2.03mph [3.3kph]2.70mph [4.3kph]
    3L-Low2.85mph [4.6kph]3.79mph [6.1kph]
    3L-High3.72mph [6.0kph]4.96mph [8.0kph]
    1H-Low4.13mph [6.6kph]5.51mph [8.9kph]
    1H-High5.39mph [8.7kph]7.20mph [11.6kph]
    2H-Low6.20mph [10.0kph]8.28mph [13.3kph]
    2H-High8.10mph [13.0kph]10.81mph [17.4kph]
    3H-Low11.38mph [18.3kph]15.17mph [24.4kph]
    3H-High14.86mph [23.9kph]19.82mph [31.9kph]
    RL-Low1.41mph [2.3kph]1.88mph [3.0kph]
    RL-High1.84mph [3.0kph]2.45mph [3.9kph]
    RH-Low5.63mph [9.1kph]7.51mph [12.1kph]
    RH-High7.35mph [11.8kph]9.81mph [15.8kph]
