    Massey Ferguson 135 - engine

    Massey Ferguson 135 tractor photo
    1964 - 1975   100 Series
    Utility tractor
    Previous model:Massey Ferguson 35
    Next model:Massey Ferguson 235
    Larger:Massey Ferguson 150
    Smaller:Massey Ferguson 130
    more Massey Ferguson 135 specifications...

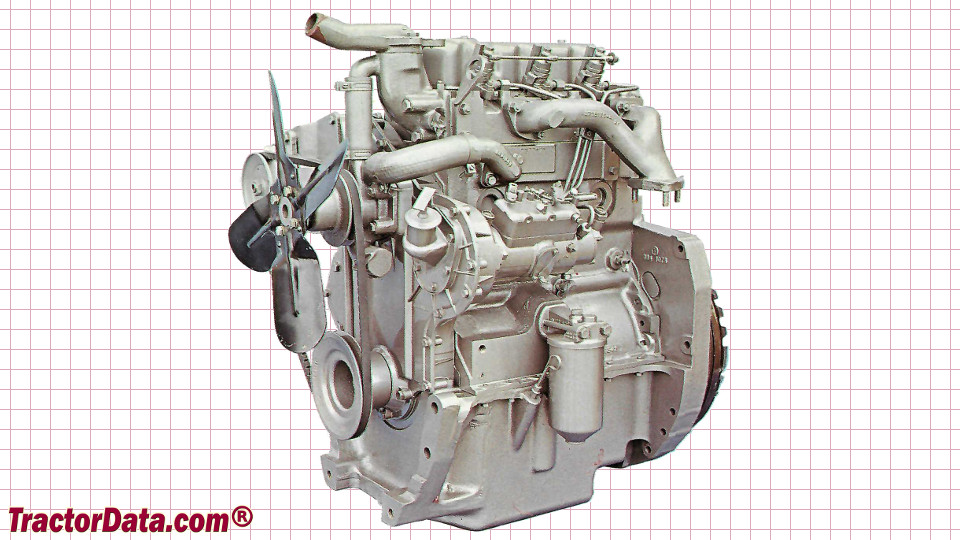

    Engine Detail:

     Perkins AD3.152
     diesel
     3-cylinder
     liquid-cooled
     152.7 ci [2.5 L]
    Bore/Stroke:3.60x5.00 inches [91 x 127 mm]
    Power:45.5 hp [33.9 kW]
    Compression:17.4:1
    Rated RPM:2000
    Idle RPM:675-2200
    Torque:121.7 lb-ft [165.0 Nm]
    Torque RPM:1300
    Firing order:1-2-3
    Starter volts:12
    Oil capacity:6.5 qts [6.2 L]
    Coolant capacity:10.5 qts [9.9 L]
    Intake valve clearance:0.010 inches [0.254 mm] (hot)
     0.012 inches [0.305 mm] (cold)
    Exhaust valve clearance:0.010 inches [0.254 mm] (hot)
     0.012 inches [0.305 mm] (cold)
    135 diesel engine oil chart

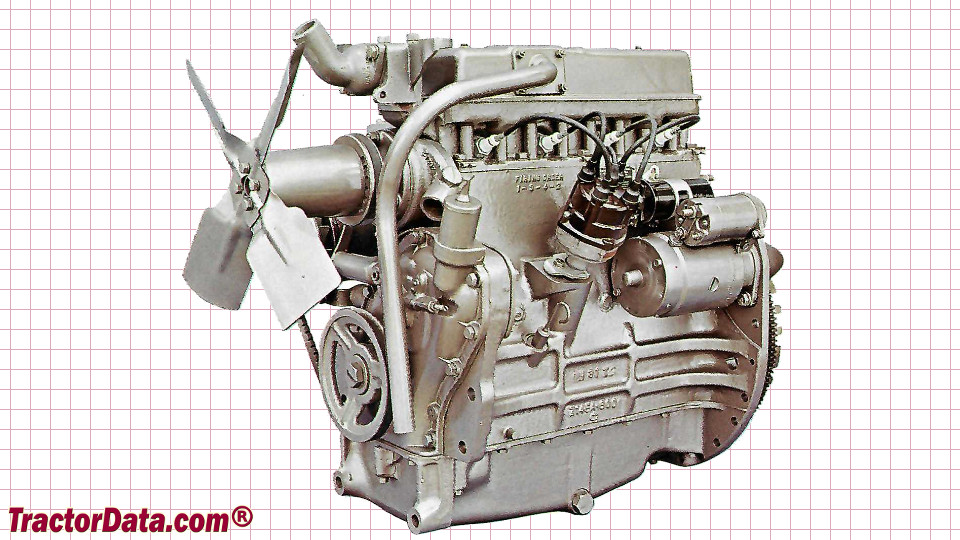

    Engine Detail:

    When equipped with the Z-145 engine, the Massey 135 was advertised as 35 PTO horsepower.
     Continental Z-145
     gasoline
     4-cylinder
     liquid-cooled
     145 ci [2.4 L]
    Bore/Stroke:3.375x4.062 inches [86 x 103 mm]
    Compression:7.1:1
    Rated RPM:2000
    Firing order:1-3-4-2
    Starter volts:12
    Oil capacity:6 qts [5.7 L]
    Sparkplug:Champion D-16
     AC 85 S
     Auto Lite BT-8
    Sparkplug gap:0.025 inches [0.635 mm]
    Point gap:0.022 inches [0.559 mm]
    Intake valve clearance:0.013 inches [0.330 mm] (hot)
    Exhaust valve clearance:0.013 inches [0.330 mm] (hot)

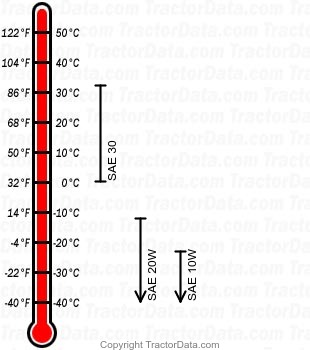

    135 gasoline engine oil chart


    Engine Detail:

     Perkins AG3.152
     gasoline
     3-cylinder
     liquid-cooled
     152.7 ci [2.5 L]
    Bore/Stroke:3.60x5.00 inches [91 x 127 mm]
    Power:45.5 hp [33.9 kW]
    Compression:7.5:1
    Rated RPM:2000


    Engine Detail:

     Continental Z-134
     gasoline
     4-cylinder
     liquid-cooled
     134 ci [2.2 L]
    Bore/Stroke:3.312x3.875 inches [84 x 98 mm]
    Power:39 hp [29.1 kW]
    Compression:6.6:1
    Rated RPM:2200
    Firing order:1-3-4-2
    Starter volts:12
    Oil capacity:6 qts [5.7 L]
    Sparkplug:Champion D-16
     AC 85 S
     Auto Lite BT-8
    Sparkplug gap:0.025 inches [0.635 mm]
    Point gap:0.022 inches [0.559 mm]
    Intake valve clearance:0.013 inches [0.330 mm] (hot)
    Exhaust valve clearance:0.013 inches [0.330 mm] (hot)
