CaseIH Farmall 115U

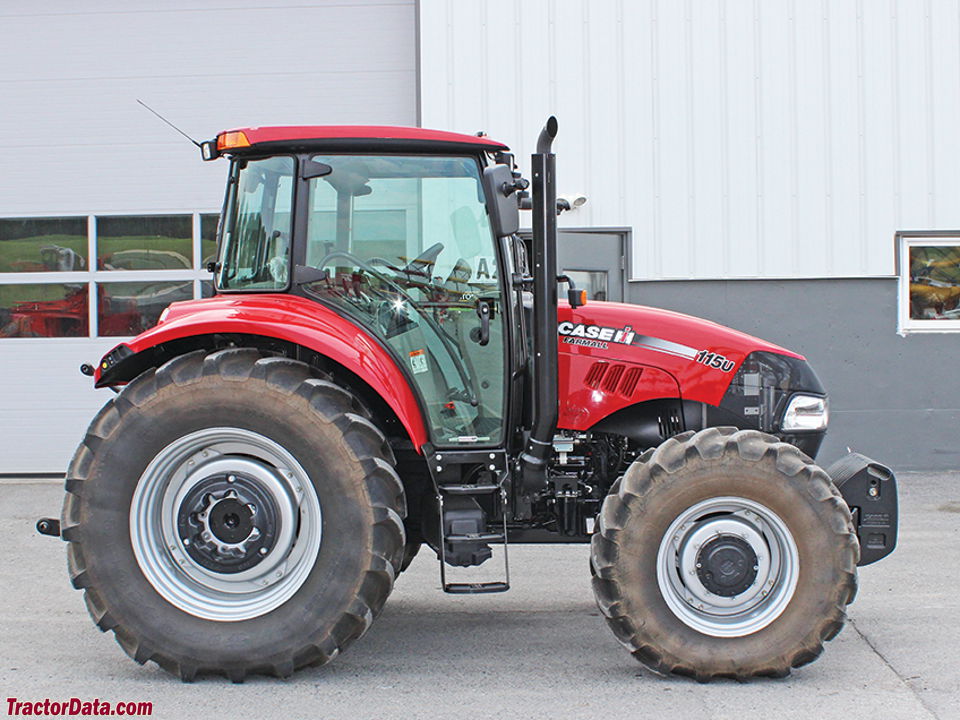

CaseIH Farmall 115U tractor photo
2013 - 2016
Farmall U Series
Utility tractor
Series map:
Farmall 105U
Farmall 115U
Utility tractor
Built in Italy
Original price was $90,922 in 2015
T5.115similar New Holland model
CaseIH Farmall 115U Engine
FPT 3.4L 4-cyl diesel
Fuel tank37 gal
140.0 L
Engine details ...
CaseIH Farmall 115U Transmissions
12-speed power shuttle
20-speed creeper power shuttle
24-speed two-speed power shift
Transmission details ...
CaseIH Farmall 115U Power
Engine (gross)115 hp
85.8 kW
PTO (claimed)98 hp
73.1 kW
Drawbar (tested)73.0 hp
54.4 kW
PTO (tested)104.7 hp
78.1 kW
Performance test details ...
Four-wheel drive
Final drivesinboard planetary
Power steering
Hydraulic wet disc brakes
Cab with air-conditioning.
Typeopen center
Valves2 to 3
Pump flow16.1 gpm
60.9 lpm
 21.1 gpmOptOptional
79.9 lpm
Steering flow10 gpm
37.9 lpm
 11.4 gpmOptOptional
43.1 lpm
Tractor hitch
Rear TypeII
Controlelectronic draft control
Rear lift (at ends)adjustable lbs
0 kg
Rear lift (at 24"/610mm)6393 lbs
2899 kg
 11949 lbsOptOptional
5420 kg
DrawbarCat. II, swinging
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
 540E OptOptional
Dimensions & Tires
Wheelbase92.5 inches
234 cm
Weight9370 lbs
4250 kg
Front tire14.9R24
Rear tire18.4R34
Full dimensions and tires ...
Charging systemalternator
Charging amps120
Battery volts12
Farmall 115U references literature
Farmall U Series Utility Tractors published in 2013, by CaseIH
