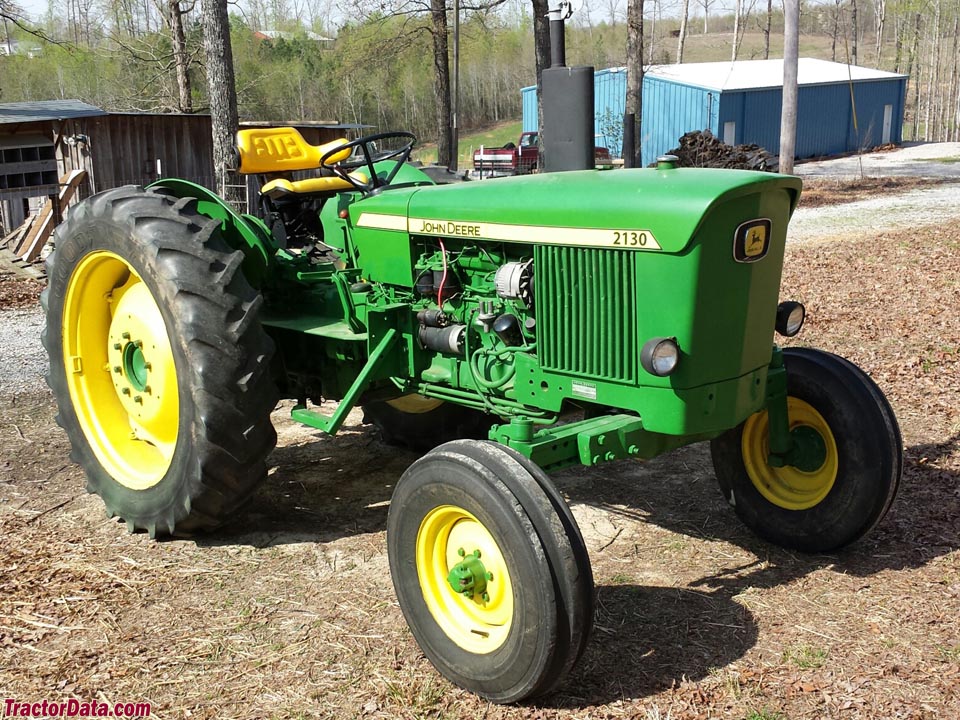

John Deere 2130
| | 1973 - 1977 |
| Utility tractor |
|
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| John Deere 2130 Power |
| Engine (gross) | 79.1 hp
59.0 kW
|
| Engine (net) | 73.8 hp
55.0 kW
|
| PTO (claimed) | 60.4 hp
45.0 kW
|
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 HFWD 4WD
|
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Steering | manual
|
| Steering | power OptOptional
|
| Hydraulic wet disc brakes |
| Open operator station. Cab optional. |
| Hydraulics |
| Type | closed center
|
| Pressure | 2248 psi
155.0 bar
|
| Pump flow | 6.6 gpm
25.0 lpm
|
| | 12.4 gpmOptOptional
46.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position control and lower-link draft sensing
|
| Rear lift | 5560 lbs
2522 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| | independent OptOptional
|
| Rear PTO Type | 540 (1.375)
|
| | 540/1000 (1.375)OptOptional
|
| Engine RPM | 540@2100
|
| | 1000@2100
|

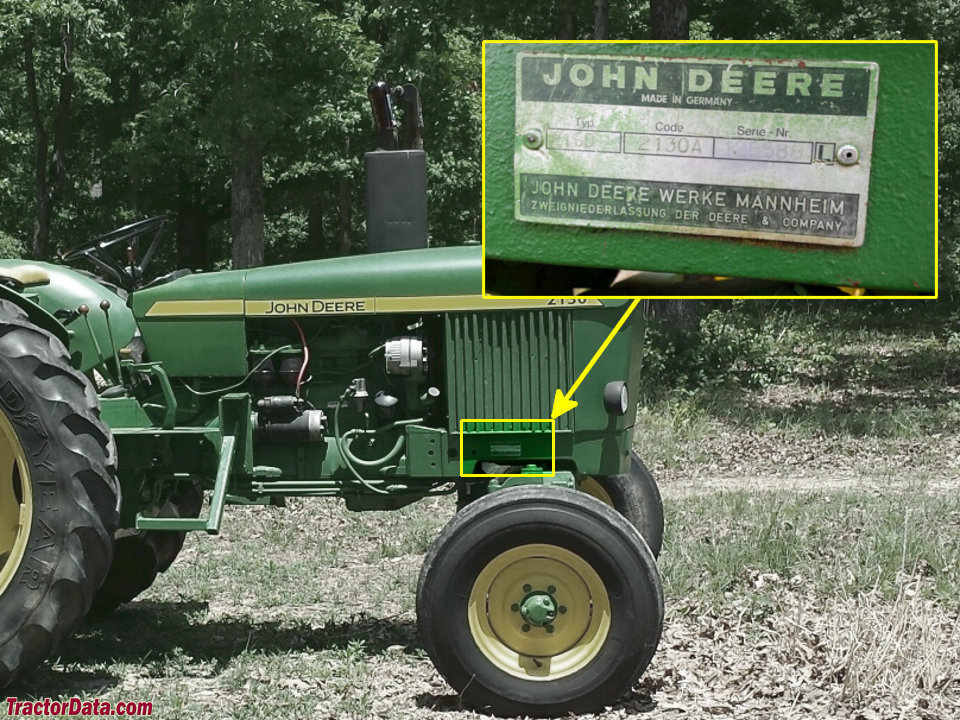

| 2130 Serial Number Location |
 |
| Right side of tractor frame, above front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 28
|
| Charging volts | 14
|
| Batteries | 2
|
| Battery volts | 12
|
| Battery AH | 55
|
| References |
 |
| Operator's Manual 145 Loader (OMW21474) |
| Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere |
| Tractors 40 to 80 hp published in 1978, by John Deere |
| Product Information Manual published in 1975, by John Deere |
| Product Information Manual published in 1977, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on March 24, 2024 |
http://techpubs.deere.com/ - Official operator manuals for purchase or download from Deere.
|
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

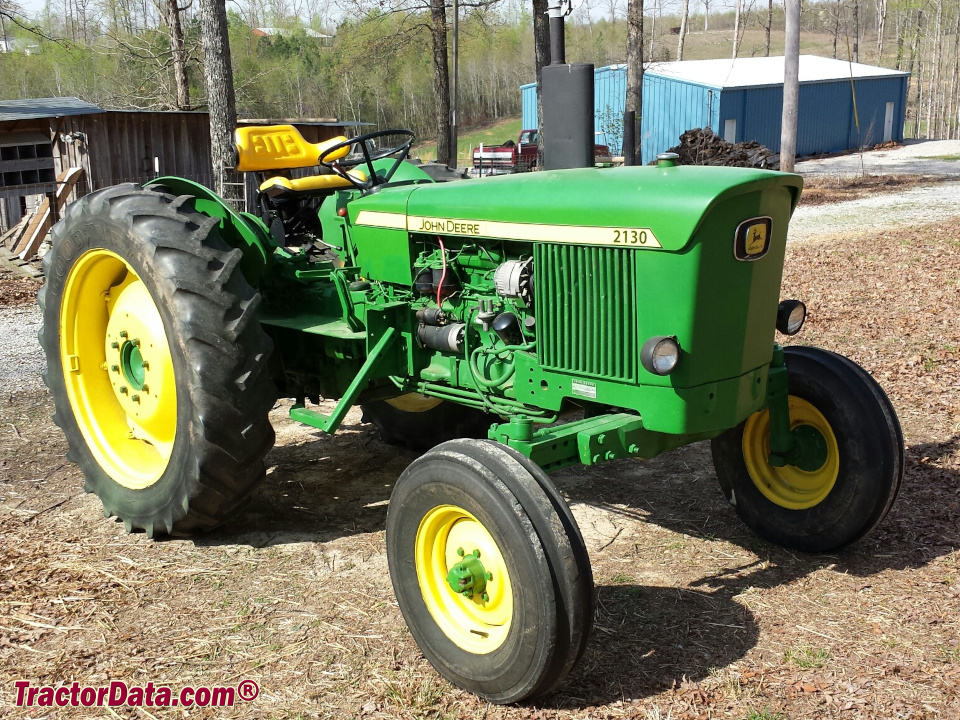

John Deere 2130 photos...
