John Deere 2130 Transmission


John Deere 2130 tractor photo
1973 - 1977
Utility tractor
Transmissions overview
8-speed
16-speed
Transmission
Gears:8 forward and 4 reverse
Clutch:dry disc
Oil capacity:26.9 qts
25.5 L (service)
 38 qts
36.0 L (dry)
Transmission
Transmission:Hi-Lo
Gears:16 forward and 8 reverse
Oil capacity:26.9 qts
25.5 L (service)
 38 qts
36.0 L (dry)

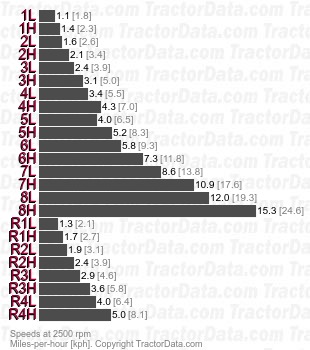

Speeds
With 16.9-34 rear tires.
2130 Hi-Lo  speeds
