Tractors > Allis Chalmers > U

Allis Chalmers U

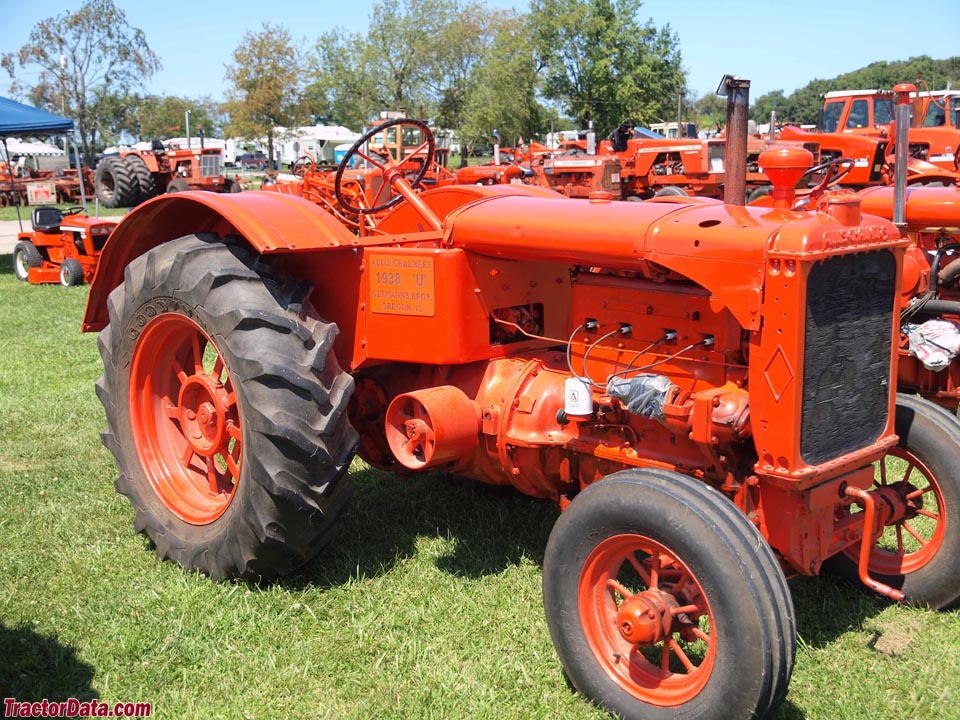

Allis Chalmers U tractor photo
1929 - 1952
Standard-tread tractor





Tractors fitted with factory steel wheels had a 3-speed gearbox, done by removing a shifter fork from the regular transmission. The U was also sold as the United Model U (1929-1931), and was distributed by the United Tractor and Equipment Corporation. United was a group of Fordson dealers who contracted Allis for a new tractor, once Ford stopped North American production of the Fordson.


Production:

Manufacturer:Allis Chalmers
Factory:West Allis, Wisconsin, USA
Total built:19,009


Variants:

U:standardl UC[8]


Allis Chalmers U Engines:

   Continental 4.6L 4-cyl gasoline
   Waukesha 4.9L 4-cyl gasoline
   Allis-Chalmers 5.2L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:24 gal [90.8 L]


Dimensions & Tires:

Weight:4,600 lbs [2086 kg]
Front tire:28x6
Rear tire:42x11
full dimensions and tires ...


U Serial Numbers:

Location:Rear of differential, near PTO
1929: 1
1930: 1975
1931: 6554
1932: 7262
1933: 7419
1934: 7685
1935: 8063
1936: 9471
1937: 12822
1938: 14855
1939: 15587
1940: 16078
1941: 16722
1942: 17137
1943: 17470
1944: 17802
1945: (none)
1946: (none)
1947: 18309, 20174
1948: 18613, 20179, 21000
1949: 20301, 210036, 22018
1950: 20422, 22024

how to read serial numbers...



Allis Chalmers U Power:

Drawbar (claimed):20 hp [14.9 kW]
Belt (claimed):31 hp [23.1 kW]
Plows:3 (14-inch)
Drawbar (tested):30.37 hp [22.6 kW]
Belt (tested):35.04 hp [26.1 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
