Ford 8830 Transmission


Ford 8830 tractor photo
1990 - 1993
8030 Series
Row-Crop tractor
TW-35
Series:87308830
Transmissions overview
18-speed
16-speed
Transmission
Transmission:Funk Ultra Command
Gears:18 forward and 9 reverse
Oil capacity:101.6 qts
96.2 L
The Ford Ultra Command Powershift allows on-the-move shifting between gears, and shuttle shifting, without a clutch. A single lever controls the transmission; moving it to the left shifts down, to the right shifts up. Pushing forward increases forward throttle while pulling it back moves the tractor in reverse. An inching pedal is used for precise movements.
Speeds
18.4/15-38 rear tires.
8830 Ultra Command  speeds
Transmission
Transmission:Dual Power - constant mesh
Gears:16 forward and 4 reverse
Oil capacity:91.6 qts
86.7 L (2WD)
 97.1 qts
91.9 L (4WD)
The Dual Power transmission provides a 'Powerdrive' low range to the basic constant mesh transmission. A foot switch next to the clutch is used to engage and disengage the mode, and may be switched while the tractor is in motion. A "rabbit" or "turtle" display light on the instrument panel indicates which mode the transmission is selected.
Speeds
18.4/15-38 rear tires.

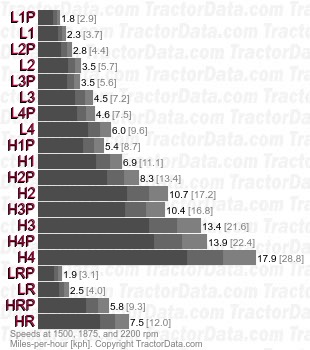

8830 Dual Power - constant mesh  speeds
