    Ford-New Holland 8770 - engine

    Ford-New Holland 8770 tractor photo
    1993 - 2002   70 Genesis Series
    Row-Crop tractor
    Previous model:Ford 8770
    Larger:Ford-New Holland 8870
    Smaller:Ford-New Holland 8670
    more Ford-New Holland 8770 specifications...





    Note: the Ford-New Holland model 8770 is the same as the Ford 8770. The following data is from the 8770 listing.


    Engine Detail:

     Ford
     turbocharged diesel
     6-cylinder
     liquid-cooled
     456 ci [7.5 L]
    Bore/Stroke:4.4x5.0 inches [112 x 127 mm]
    Power:190 hp [141.7 kW]
    Compression:17.5:1
    Rated RPM:2100
    Firing order:1-5-3-6-2-4
    Starter volts:12
    Starter power:6 hp [4.5 kW]
    Oil capacity:22 qts [20.8 L]
    Coolant capacity:26.4 qts [25.0 L]

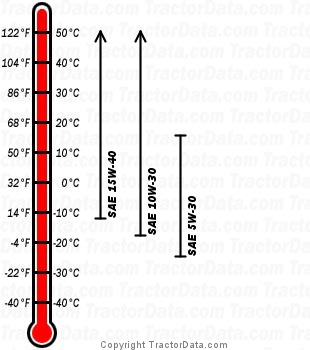

    8770 diesel engine oil chart
