Ford 8770 Engine


Ford 8770 tractor photo
1993 - 2002
70 Genesis Series
Row-Crop tractor
Series map:
8670
8770
8870
170.0hp
190.0hp
210.0hp
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement456 ci
7.5 L
Bore/Stroke4.4x5.0 inches
112 x 127 mm
Power190 hp
141.7 kW
Compression17.5:1
Rated RPM2100
Firing order1-5-3-6-2-4
Starter volts12
Starter power6 hp
4.5 kW
Coolant capacity26.4 qts
25.0 L
Engine Oil

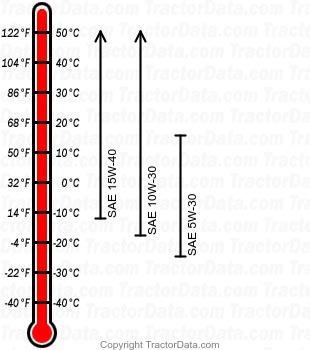

8770 diesel engine oil chart
Oil capacity22 qts
20.8 L
Ford 8770 Engine

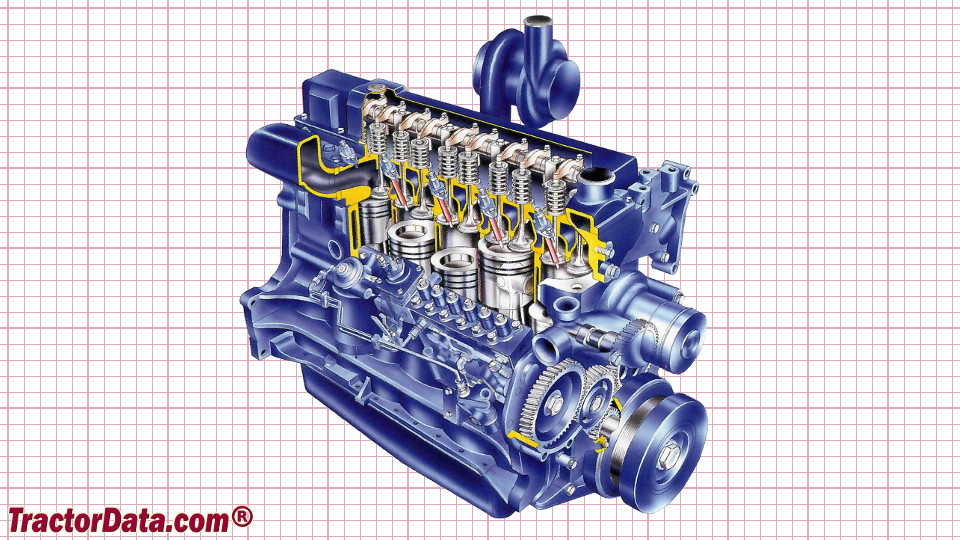

Ford 8770 engine image
