    Ford-New Holland 8630 - engine




    No photo available
    Model:8630
    Years:1990 - 1993
    Tractor type:Farm/Agricultural tractor
    Original price:$52,500 (1993)
    more Ford-New Holland 8630 specifications...


    Engine:

    Manufacturer:Ford
    Fuel:diesel
    Aspiration:turbocharged
    Cylinders:6
    Valves:-unknown-
    Bore/Stroke:4.40x4.40 inches [112 x 112 mm]
    Displacement:401 ci [6.6 L]
    Cooling:liquid
    Coolant:22 qts [20.8 L]
    23.6 qts [22.3 L] (with heater)
    Compression:15.6:1
    Rated RPMs:2200
    Firing order:1-5-3-6-2-4
    Starter type:-unknown-
    Oil capacity:19.6 qts [18.5 L]

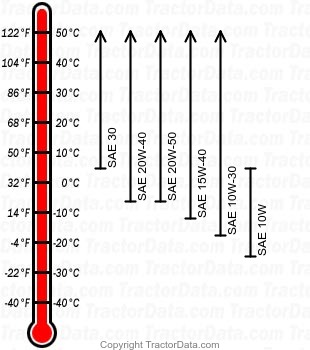

    Oil type:
    40oF [4oC]↑ : SAE30
    20oF [-6oC]↑ : SAE20W-40
    20oF [-6oC]↑ : SAE20W-50
    10oF [-12oC]↑ : SAE15W-40
    0oF [-17oC]↑ : SAE10W-30
    -13o↔40oF [-25o↔4oC]   : SAE10W

    Intake valve clearance:0.014-0.016 (cold)
    Exhaust valve clearance:0.017-0.019 (cold)
