Ford-New Holland 8630 Tests


No photo available
1990 - 1993
Row-Crop tractor

Note: the Ford-New Holland model 8630 is the same as the Ford 8630. The following data is from the 8630 listing.
Nebraska Tractor Test 1536

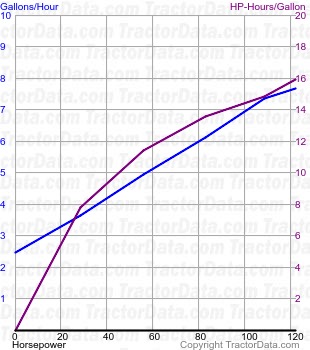

8630 fuel use from test 1536
Nebraska Tractor Test 1536
Diesel 16-speed 4WD
September 10 - 18, 1984
Link: Nebraska Tractor Test 1536 file
PTO performance
Power at rated engine speed:121.25 hp
90.4 kW
Fuel use:7.6 gal/hour
28.8 l/hour
Power at rated PTO speed:115.58 hp
86.2 kW
Fuel use:1.0 gal/hour
3.8 l/hour
Drawbar performance
Max power:105.76 hp
78.9 kW
Fuel use:7.6 gal/hour
28.8 l/hour
Gear 5L used for power test.
Max pull:15,939 lbs
7229 kg
Gear 1H used for pull test.
