Ford-New Holland 8530 - transmission

No photo available
1990 - 1993
Row-Crop tractor
more Ford-New Holland 8530 specifications...





Note: the Ford-New Holland model 8530 is the same as the Ford 8530. The following data is from the 8530 listing.


Transmission:

Transmission:Dual Power - constant mesh
Gears:16 forward and 4 reverse
Oil capacity:80 qts [75.7 L] (2WD)
 85.5 qts [80.9 L] (4WD)
The Dual Power transmission provides a 'Powerdrive' low range to the basic constant mesh transmission. A foot switch next to the clutch is used to engage and disengage the mode, and may be switched while the tractor is in motion. A "rabbit" or "turtle" display light on the instrument panel indicates which mode the transmission is selected.
Speeds:18.4/15-38 rear tires.
8530 Dual Power - constant mesh  speeds


Transmission:

Transmission:Constant mesh
Gears:8 forward and 2 reverse
Oil capacity:72.8 qts [68.9 L] (2WD)
 87.3 qts [82.6 L] (4WD)
Tranmission is operated with two levers and the clutch pedal. Left lever selects high, low, or the optional creeper range. Right lever selects one of four forward gears, or reverse. Tractor must be stopped to make gear or range changes.
Speeds:18.4/15-38 rear tires.

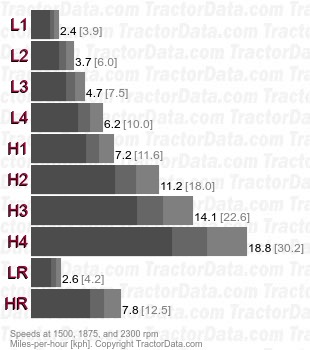

8530 Constant mesh  speeds
