New Holland 5640 Tests


New Holland 5640 tractor photo
1996 - 1998
PowerStar 40 Series
Utility tractor
Series map:
5640
6640
78.7hp
90.7hp

Note: the New Holland model 5640 is the same as the Ford 5640. The following data is from the 5640 listing.
OCED Tractor Test 1656

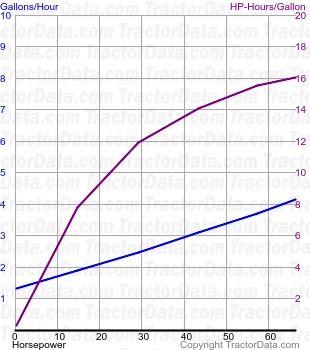

5640 fuel use from test 105
OCED Tractor Test 1656
Diesel 16x4 4WD
April 22 - May 12, 1992
Link: OCED Tractor Test 1656 file
PTO performance
Power at rated engine speed66.26 hp
49.4 kW
Fuel use4.1 gal/hour
15.5 l/hour
Power at rated PTO speed63.17 hp
47.1 kW
Fuel use3.8 gal/hour
14.4 l/hour
Drawbar performance
Max power59.99 hp
44.7 kW
Fuel use4.2 gal/hour
15.9 l/hour
Gear 5-Low used for power test.
Max pull8,611 lbs
3905 kg
Gear 2H used for pull test.
