Ford-New Holland 3910 Transmission
|
|
| Series: | 3910 |
| 3930 ↓ |
Note: the Ford-New Holland model 3910 is the same as the Ford 3910. The following data is from the 3910 listing. |
| Transmissions overview | |
| 8-speed | |
| 8-speed synchromesh | |
| 6-speed mechanical shuttle |
| Transmission | |
| Transmission: | Dual Range |
| Gears: | 8 forward and 2 reverse |
| Clutch: | 330mm dry disc |
| Oil capacity: | 12.7 qts 12.0 L |

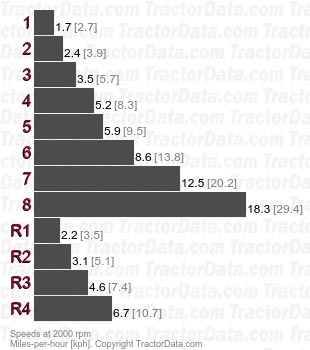

| Speeds | |
| With 13.6x28 rear tires. | |
|
| Transmission | |
| Type: | synchromesh |
| Gears: | 8 forward and 4 reverse |
| Clutch: | dry disc |
| Oil capacity: | 9.9 qts 9.4 L |
| Speeds | |
| With 13.6x28 rear tires. | |
|
| Transmission | |
| Type: | mechanical shuttle |
| Gears: | 6 forward and 4 reverse |
| Six-speed transmission became available on the 3910 II in 1986. | |

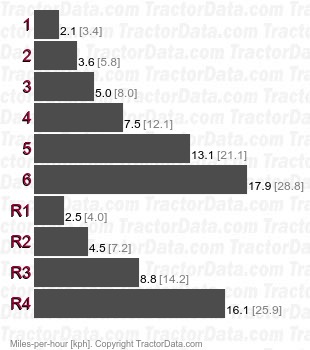

| Speeds | |
|
