Tractors > J.I. Case > 1270

J.I. Case 1270 Tests



J.I. Case 1270 tractor photo
1972 - 1978
Row-Crop tractor
Series map:
1270
1370
141.1hp*
158.3hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1103: diesel 12-speed 2WD
NTTL 1160: diesel 12-speed 2WD
Nebraska Tractor Test 1103

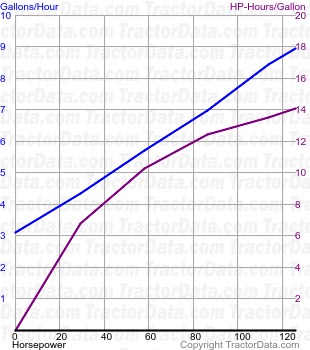

1270 fuel use from test 1103
Nebraska Tractor Test 1103
Diesel 12-speed 2WD
June 9 - 16, 1972
Link: Nebraska Tractor Test 1103 file
PTO performance
Power at rated engine speed126.70 hp
94.5 kW
Fuel use8.9 gal/hour
33.7 l/hour
Power at rated PTO speed126.60 hp
94.4 kW
Fuel use8.7 gal/hour
32.9 l/hour
Drawbar performance
Max power108.45 hp
80.9 kW
Fuel use8.9 gal/hour
33.7 l/hour
Gear 3-Lo used for power test.
Max pull12,690 lbs
5756 kg
Gear 1-Hi used for pull test.
Nebraska Tractor Test 1160

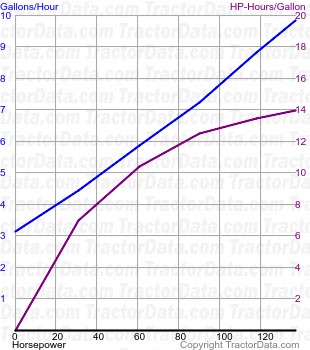

1270 fuel use from test 1160
Nebraska Tractor Test 1160
Diesel 12-speed 2WD
June 3 - 11, 1974
Link: Nebraska Tractor Test 1160 file
PTO performance
Power at rated engine speed135.39 hp
101.0 kW
Fuel use9.8 gal/hour
37.1 l/hour
Power at rated PTO speed135.41 hp
101.0 kW
Fuel use9.5 gal/hour
36.0 l/hour
Drawbar performance
Max power116.77 hp
87.1 kW
Fuel use9.6 gal/hour
36.3 l/hour
Gear 3-Lo used for power test.
Max pull15,648 lbs
7097 kg
Gear 1-Int used for pull test.
