Tractors > J.I. Case > 1190

J.I. Case 1190 - tests

J.I. Case 1190 tractor photo
1980 - 1983   90 Series
Utility tractor
Previous model:J.I. Case 885
Next model:J.I. Case 1194
Series next:J.I. Case 1290
more J.I. Case 1190 specifications...






Nebraska Tractor Test 1378:

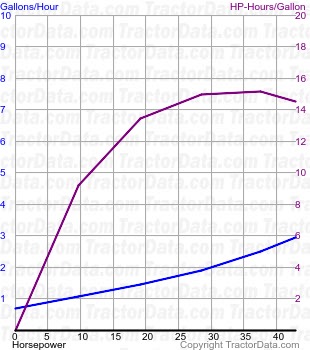

1190 fuel use from test 1378
Test Date:March 27 - April 9, 1981
Type:Diesel 12-speed 2WD
PTO power (rated engine speed):43.09 hp [32.1 kW]
PTO fuel use (engine speed):2.9 gal/hour [11.0 l/hour]
PTO power (rated PTO speed):38.54 hp [28.7 kW]
PTO fuel use (PTO speed):2.6 gal/hour [9.8 l/hour]
Drawbar power (max):34.65 hp [25.8 kW]
Drawbar fuel use (max):2.8 gal/hour [10.6 l/hour]
Drawbar pull (max):4620 lbs [2095 kg]
Max pull gear:1-3
Test report:PDF file
