Tractors > J.I. Case > 1170

J.I. Case 1170 - tests

J.I. Case 1170 tractor photo
1970 - 1970
Row-Crop tractor
Next model:J.I. Case 1175
more J.I. Case 1170 specifications...






Nebraska Tractor Test 1062:

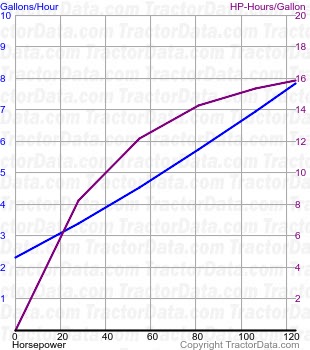

1170 fuel use from test 1062
Test Date:November 6 - 19, 1970
Type:Diesel 8-speed 2WD
PTO power (rated engine speed):121.93 hp [90.9 kW]
PTO fuel use (engine speed):7.7 gal/hour [29.1 l/hour]
PTO power (rated PTO speed):118.13 hp [88.1 kW]
PTO fuel use (PTO speed):7.2 gal/hour [27.3 l/hour]
Drawbar power (max):108.15 hp [80.6 kW]
Drawbar fuel use (max):7.8 gal/hour [29.5 l/hour]
Drawbar pull (max):13730 lbs [6227 kg]
Max pull gear:2L
Test report:PDF file
