    J.I. Case 1030 - tests

    J.I. Case 1030 tractor photo
    1966 - 1969
    more J.I. Case 1030 specifications...






    Nebraska Tractor Test 952:

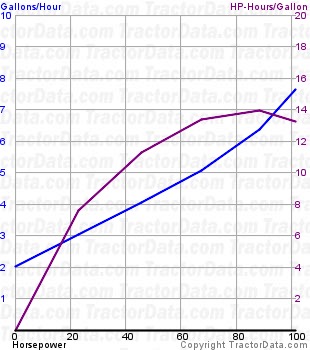

    1030 fuel use from test 952
    Test Date:November 2 - 5, 1966
    Type:Diesel 8-speed 2WD
    PTO power (rated engine speed):101.79 hp [75.9 kW]
    PTO fuel use (engine speed):7.7 gal/hour [29.1 l/hour]
    PTO power (rated PTO speed):93.15 hp [69.5 kW]
    PTO fuel use (PTO speed):6.8 gal/hour [25.7 l/hour]
    Drawbar power (max):88.34 hp [65.9 kW]
    Drawbar fuel use (max):7.6 gal/hour [28.8 l/hour]
    Drawbar pull (max):12,056 lbs [5468 kg]
    Max pull gear:2
    Test report:PDF file
