Tractors > J.I. Case > 940

J.I. Case 940 - tests

J.I. Case 940 tractor photo
1960 - 1967   30 Series
Standard-tread tractor
more J.I. Case 940 specifications...






Nebraska Tractor Test 739:

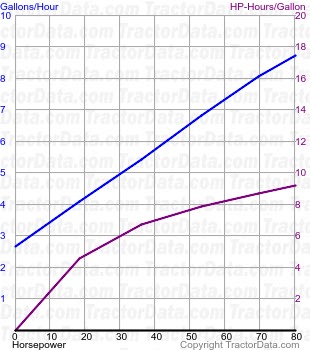

940 fuel use from test 739
Test Date:April 5 - 23, 1960
Type:LP gas 6-speed 2WD
PTO power (rated engine speed):79.64 hp [59.4 kW]
PTO fuel use (engine speed):8.7 gal/hour [32.9 l/hour]
PTO power (rated PTO speed):74.60 hp [55.6 kW]
PTO fuel use (PTO speed):8.0 gal/hour [30.3 l/hour]
Drawbar power (max):69.99 hp [52.2 kW]
Drawbar fuel use (max):8.5 gal/hour [32.2 l/hour]
Drawbar pull (max):11016 lbs [4996 kg]
Max pull gear:1
Test report:PDF file
