Tractors > J.I. Case > 801-B

J.I. Case 801-B Transmission



J.I. Case 801-B tractor photo
1958 - 1960
800 B Series
Row-Crop tractor
Series map:
801-B
60.0hp
Transmission
TransmissionCase-O-Matic
Typetorque converter
Gears8 forward and 2 reverse
Clutchhydraulic wet disc
Four gears, plus reservse, in two ranges controlled with a single shift lever. Torque converter transmission with bypass to lock in direct drive.
Speeds

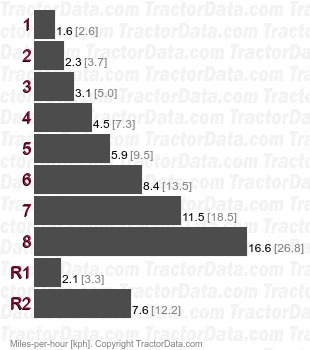

801-B Case-O-Matic torque converter speeds
Shift Pattern
J.I. Case 801-B transmission controls

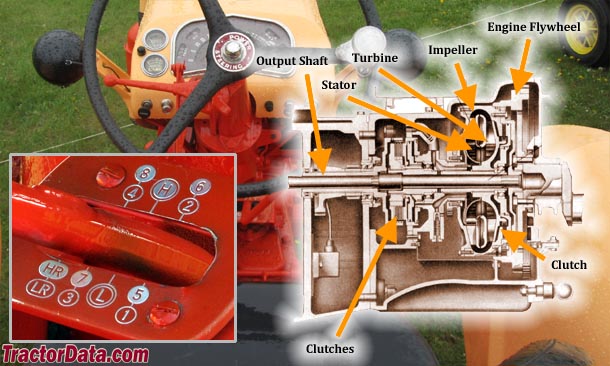

J.I. Case 801-B Transmission
J.I. Case 801-B transmission image
