J.I. Case 630

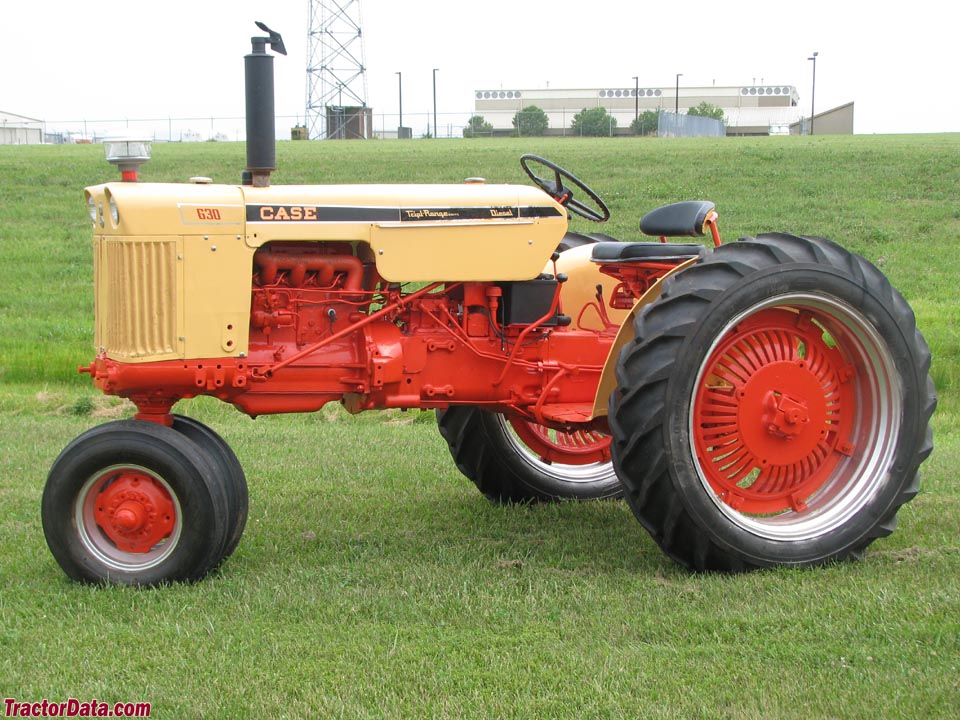

J.I. Case 630 tractor photo
1960 - 1963
630 Series
Utility tractor
Production
ManufacturerJ.I. Case
Utility tractor
FactoriesRock Island, Illinois, USA
 Racine, Wisconsin, USA
Total built1,181
Original price$4,500
A high-speed fourth gear was optional in most 630 series transmissions, an H would appear at the end of the model number to inidcate this option.
Variants
630diesel standard
631diesel row-crop
640gas standard
641gas row-crop
J.I. Case 630 Engine
J.I. Case 3.1L 4-cyl diesel
Fuel tank22 gal
83.3 L
Engine details ...
J.I. Case 630 Transmissions
8-speed torque converter
12-speed
8-speed
4-speed gear
Transmission details ...
J.I. Case 630 Power
Belt (claimed)50 hp
37.3 kW
Plows4
Drawbar (tested)43.71 hp
32.6 kW
PTO (tested)48.85 hp
36.4 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringpower assist
Differential mechanical dry disc brakes
Open operator station.
Hydraulics
TypeDual-Control
Tractor hitch
TypeCase Eagle Hitch
Power Take-off (PTO)
Rear PTOcontinuous
 independent (Case-o-matic)
Rear PTO Type540 (1.375)
 540/1000 (1.375)
Dimensions & Tires
Weight4600 to 4800 pounds
Front tire7.50-16
Rear tire16.9-28
Full dimensions and tires ...
630 Serial Number Location

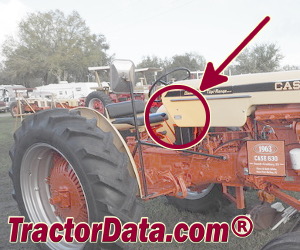

J.I. Case 630 serial number location
Serial number plate on the right side of the instrument panel.
630 Serial Numbers
19606144001
19616162601
19628190001
19638208001

FAQ: How to read a serial number table.
Belt Pulley
Diameter9.25 inches
23 cm
Width6 inches
15 cm
Electrical
Groundpositive
Batteries2
Battery volts6
References
630 references literature
1960 Progress Parade of Case Farm Equipment published by J.I. Case
A Complete New Line of Case Plus-Powered Tractors published in 1960, by J.I. Case
