J.I. Case 300 - engine

J.I. Case 300 tractor photo
1956 - 1958   300 Series
Utility tractor
Next model:J.I. Case 300-B
more J.I. Case 300 specifications...

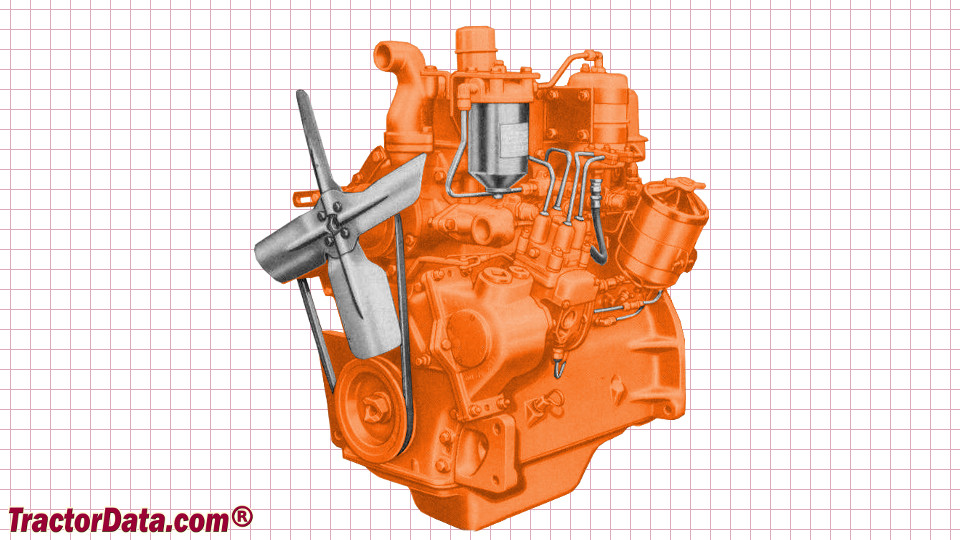

Engine Detail:

 Continental GD157
 diesel
 4-cylinder
 liquid-cooled
 157 ci [2.6 L]
Bore/Stroke:3.375x4.375 inches [86 x 111 mm]
Air cleaner:oil bath
Pre-heating:ether
Compression:15.5:1
Rated RPM:1750
Starter volts:12
Coolant capacity:12 qts [11.4 L]
