J.I. Case 300 Transmission



J.I. Case 300 tractor photo
1956 - 1958
300 Series
Utility tractor
Series map:
300
30.0hp
Transmissions overview
4-speed sliding gear
12-speed
Transmission
Typesliding gear
Gears4 forward and 1 reverse
Clutch234.9mm dry disc
Speeds

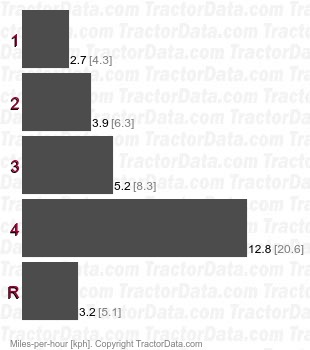

300 sliding gear speeds
Transmission
TransmissionTripl-Range
Gears12 forward and 3 reverse
Clutch234.9mm dry disc (master foot clutch)
 wet discs (traction hand clutch)
Four gears (1-4) plus reverse (R) in three ranges (low, direct, high).
Speeds

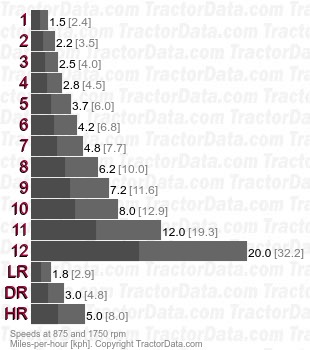

300 Tripl-Range speeds
J.I. Case 300 Transmission

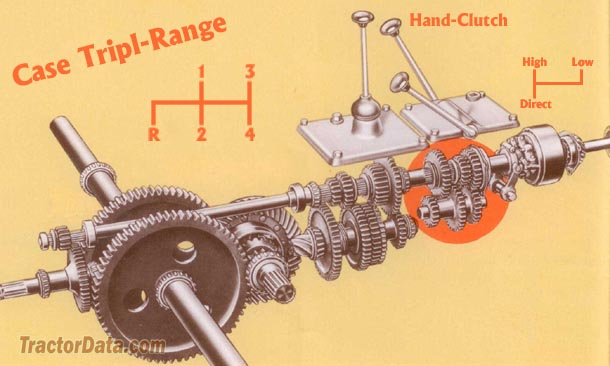

J.I. Case 300 transmission image
