J.I. Case SC

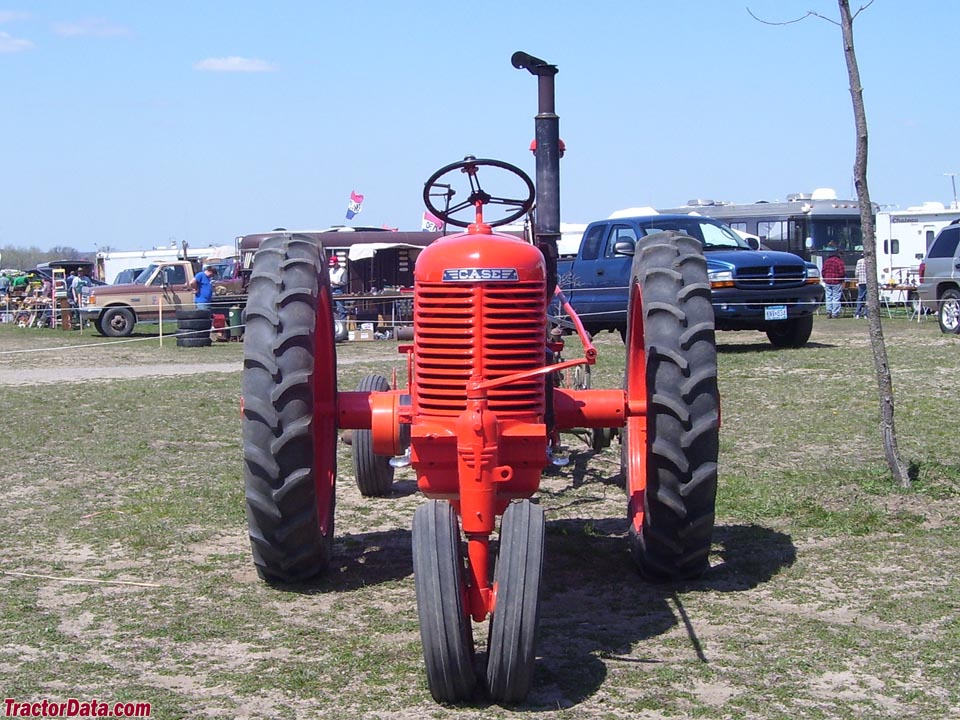

J.I. Case SC tractor photo
1941 - 1954
Row-Crop tractor
Production
Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Total built:58,991
Original price:$1,700 (1955 )
Variants
S:standard
SC:row-crop
SC-3:tricycle row-crop
SC-4:fixed-front row-crop
SI:industrial
SO:orchard
J.I. Case SC Power
Drawbar (claimed):19 hp
14.2 kW
PTO (claimed):22 hp
16.4 kW
Plows:2*14 inch
Drawbar (tested):27.68 hp
20.6 kW
Belt (tested):31.71 hp
23.6 kW
power test details ...
J.I. Case SC Engines
J.I. Case 2.5L 4-cyl distillate
J.I. Case 2.7L 4-cyl gasoline
J.I. Case 2.7L 4-cyl tractor fuel
Fuel tank:14 gal
53.0 L
Aux. fuel:1.25 gal
4.7 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:disc
Cab:Open operator station. Steel pan seat with spring suspension. Padded seat with torsional rubber suspension after 1952.
Transmission:4-speed unsynchronized gear
Transmission details ...
Tractor hitch
Type:Case Eagle Hitch
Power Take-off (PTO)
Rear PTO:continuous
 live*After 1953
Rear RPM:540*1.125 inch until 1943, 1.375 inch beginning at SN 4706368.
Dimensions & Tires
Wheelbase:83.5 inches
212 cm
Weight:4200 lbs
1905 kg
Front tire:5.00x15
Rear tire:10x38
Full dimensions and tires ...
SC Serial Numbers
Location:instrument panel

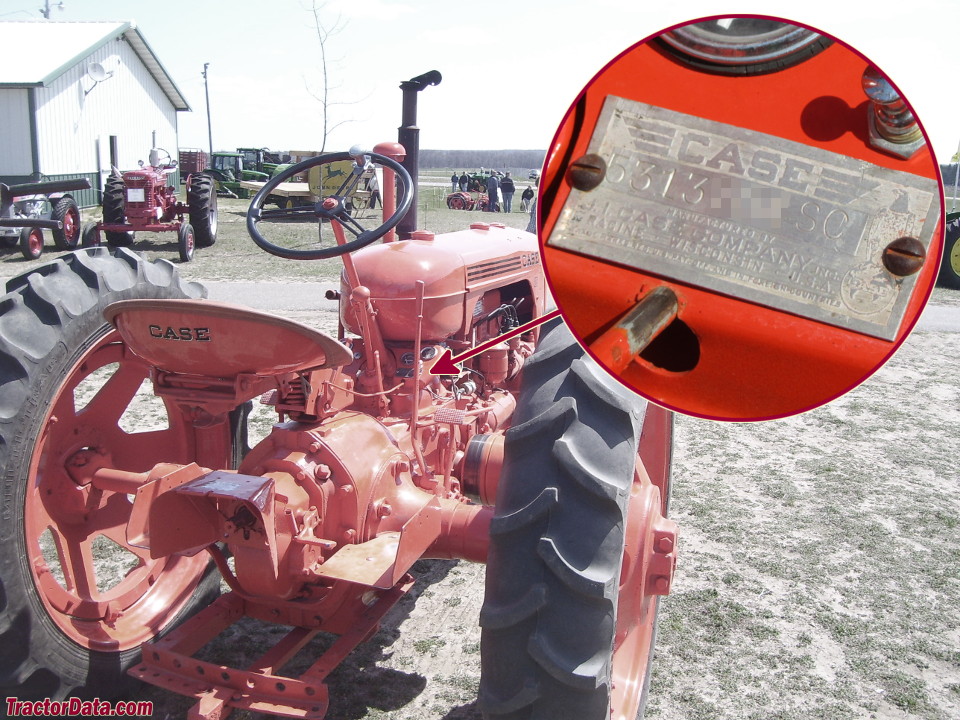

photo of SC serial number

1941:4500001
1942:4600001
1943:4700001
1944:4800001
1945:4900001
1946:5000001
1947:5100001
1948:5200001
1949:5300001
1950:5400001
1951:5500001
1952:5600001
1953:5700001
1954:8035001

how to read serial numbers...

Belt Pulley
Diameter:9.25 inches
23 cm
Width:6.375 inches
16 cm
RPM:1078
Speed:2600 ft/min
792.48 meters/min
