    International Harvester 1066

    International Harvester 1066 tractor photo  I&T Manual: IH 766, 826, 966, 1026, 1066, 454, 464, 484, 574, 584, 674, 786, 886, 986, 1086
    I&T Shop Manual
    1971 - 1976   66 Series
    Row-Crop tractor
    Next model:International Harvester 1086
    Larger:International Harvester 1466
    Smaller:International Harvester Hydro 100





    The hydrostatic drive 1066 Hydro was later renamed the Hydro 100. This was due to confusion over drawbar horsepower. The hydrostatic drive took a lot of power to operate, and the 1066 Hydro had much less power than a gear-driven 1066. Torque Amplifer (TA) was optional. The 1066 engine was altered in 1973 to increase horsepower.


    Production:

    Manufacturer:International Harvester
    Total built:54,947
    Original price (USD):$21,100 (1976)


    Variants:

    1066 Hi-Clear:high-crop


    International Harvester 1066 Engine:

       International Harvester 6.8L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:42 gal [159.0 L]


    3-Point Hitch:

    Rear Type:3/2


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000


    Dimensions & Tires:

    Wheelbase:105 inches [266 cm]
    Weight:12148 to 15260 pounds
    Front tire:11L-15
    Rear tire:18.4-38
    full dimensions and tires ...

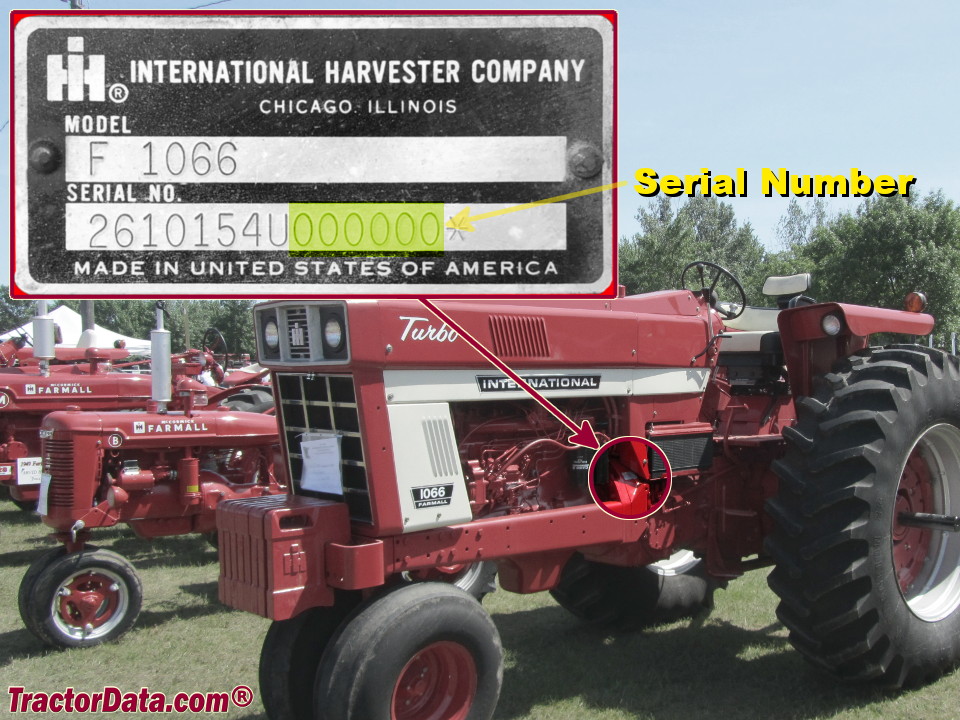

    1066 Serial Numbers:

    Location:Clutch housing, left side
    1971: 7101
    1972: 12677
    1973: 24205
    1974: 34949
    1975: 46855
    1976: 56672

    how to read serial numbers...



    International Harvester 1066 Power:

    Drawbar (claimed):108 hp [80.5 kW]
    PTO (claimed):126 hp [94.0 kW]
    Drawbar (tested):105.95 hp [79.0 kW]
    PTO (tested):125.68 hp [93.7 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:hydrostatic power
    Brakes:hydraulic dry disc
    Cab:Open operator station.


    Hydraulics:

    Type:open center


    Battery:

    Volts:12
