International Harvester 1066 Transmission


International Harvester 1066 tractor photo
1971 - 1976
66 Series
Row-Crop tractor
Series:Hydro 10010661466
1086
Transmissions overview
8-speed gear
16-speed partial power shift
hydrostatic
Transmission
Type:gear
Gears:8 forward and 4 reverse
Clutch:dry disc
Speeds
With 18.4-38 rear tires.

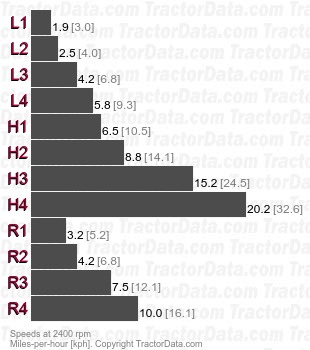

1066  gear speeds
Transmission
Transmission:Torque Amplifier
Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
Four gears (1-4) in two ranges (Low/High) with the two-speed Torque Amplifier power shift (TA/direct).
Speeds
With 18.4-38 rear tires.

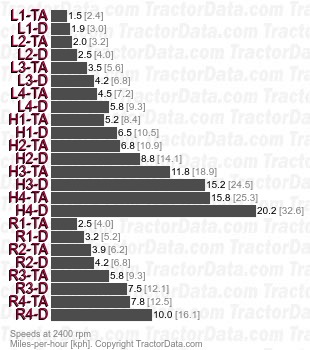

1066 Torque Amplifier partial power shift speeds
Transmission
Type:hydrostatic
Gears:infinite (two-range) forward and reverse
Speeds

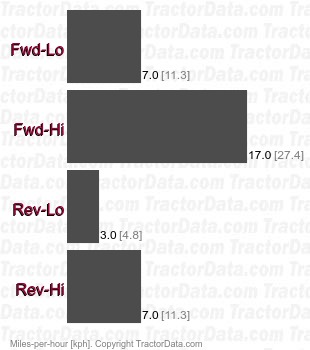

1066  hydrostatic speeds
