Tractors > International Harvester > 886

International Harvester 886 Engine



International Harvester 886 tractor photo
1976 - 1981
86 Series
Row-Crop tractor
Series map:
786
886
986
89.1hp*
95.7hp*
117.4hp*
*Estimated engine power for comparison only.
Engine Detail
International Harvester D-360
diesel
6-cylinder
liquid-cooled
The D360 engine was used in the 886 into 1979, serial number 14471.
Displacement360 ci
5.9 L
Bore/Stroke3.875x5.085 inches
98 x 129 mm
Air cleanerdual dry element
Rated RPM2400
Starter volts12
Coolant capacity24 qts
22.7 L
Engine Oil

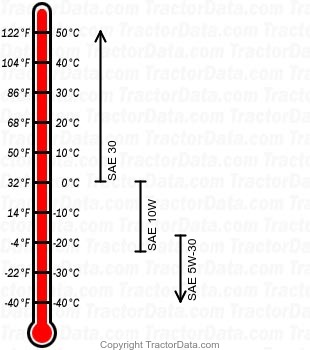

886 diesel engine oil chart
Oil capacity12 qts
11.4 L
Engine Detail
International Harvester D-358
diesel
6-cylinder
liquid-cooled
The IH 886 tractor switched to the D-358 engine in 1979, serial number 14472.
Displacement358 ci
5.9 L
Bore/Stroke3.875x5.0625 inches
98 x 129 mm
Air cleanerdual dry element
Compression14.8:1
Rated RPM2400
Coolant capacity24 qts
22.7 L
Engine Oil
886 diesel engine oil chart
Oil capacity12 qts
11.4 L
