International Harvester 784 - transmission

International Harvester 784 tractor photo
1977 - 1984   84 Series
Utility tractor
Series next:International Harvester 884
Series back:International Harvester 684
more International Harvester 784 specifications...






Transmission:

Type:syncromesh
Gears:8 forward and 4 reverse
Clutch:dry disc
Oil capacity:36 qts [34.1 L]
Four synchronized gears in high, low, and reverse ranges.
Speeds:With 15.8-38 rear tires.

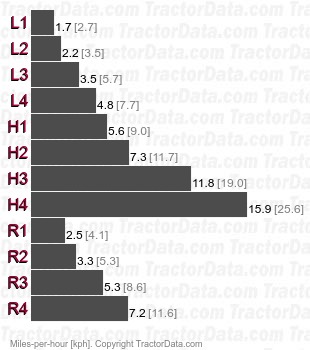

784  syncromesh speeds


Transmission:

Transmission:Torque Amplifier
Type:two-speed power shift
Gears:16 forward and 8 reverse
Oil capacity:36 qts [34.1 L]
The Torque Amplifier (TA) provides a power shift (clutchless, on the move) from direct drive (DD) to a lower TA speed.
Speeds:With 15.8-38 rear tires.

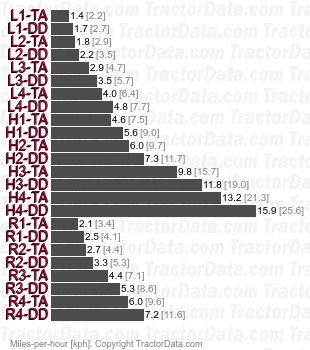

784 Torque Amplifier two-speed power shift speeds
